Ragot::Camera Class Reference

Represents a camera in a 3D space, managing its properties and transformations. More...

#include <Camera.hpp>

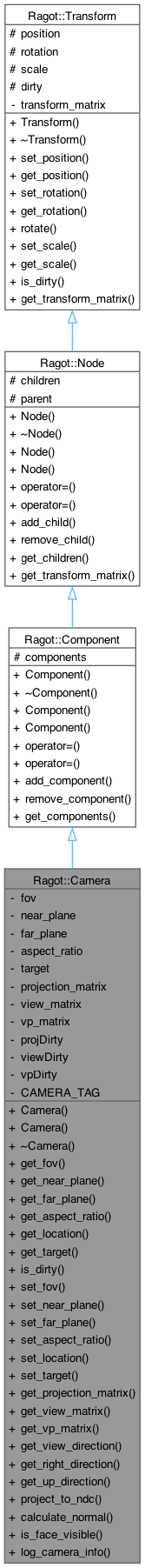

Inheritance diagram for Ragot::Camera:

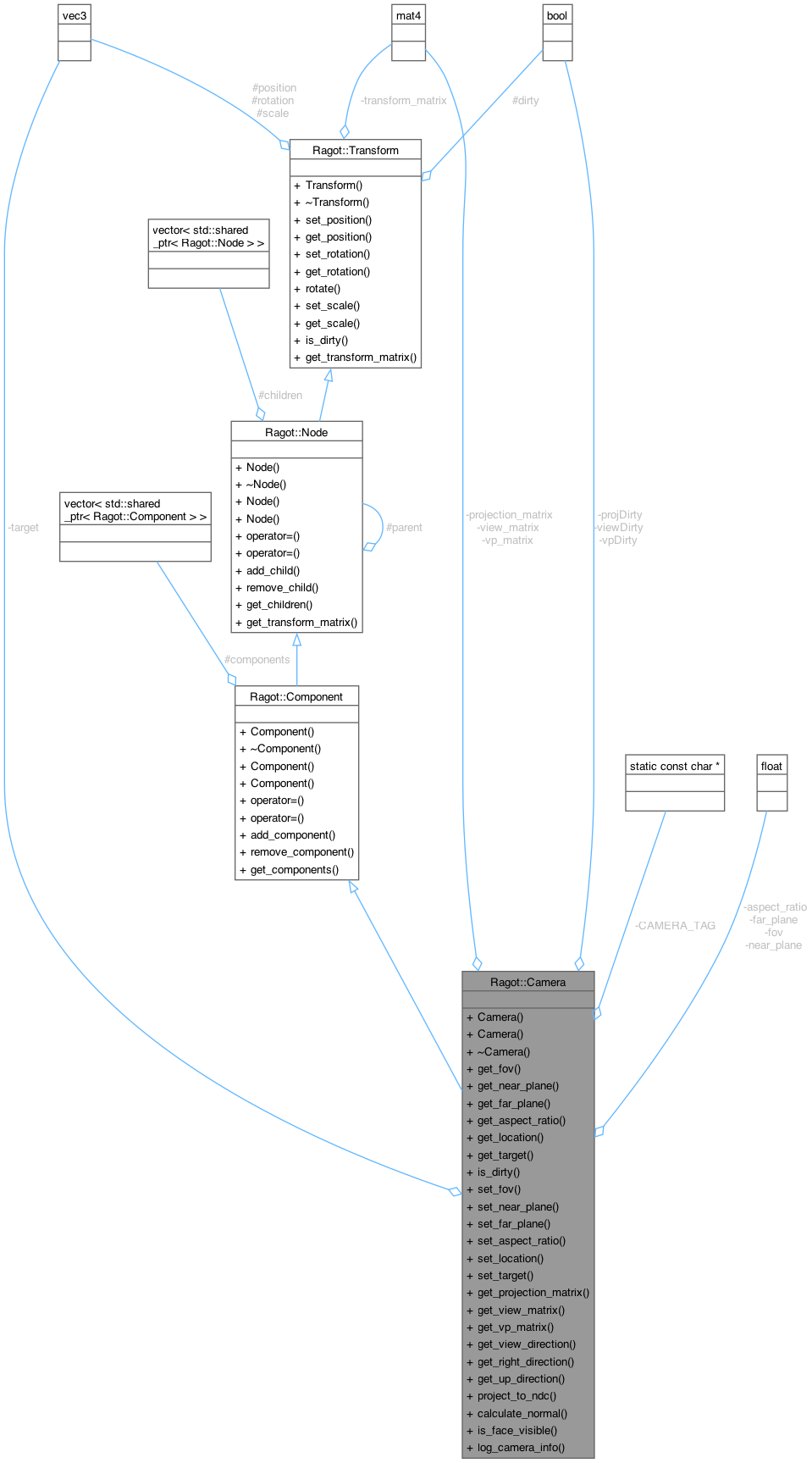

Collaboration diagram for Ragot::Camera:

Public Types
using	Matrix4x4 = glm::mat4

Public Member Functions
	Camera ()=delete
	Delete default constructor to prevent instantiation without parameters.
	Camera (float aspect_ratio=1.f, float near_plane=1.f, float far_plane=100.f, float fov_deg=60.f)
	Constructs a Camera object with specified parameters.
	~Camera ()=default
	Default destructor for Camera class.
float	get_fov () const
	Returns the camera's field of view in degrees.
float	get_near_plane () const
	Returns the camera's near clipping plane distance.
float	get_far_plane () const
	Returns the camera's far clipping plane distance.
float	get_aspect_ratio () const
	Returns the camera's aspect ratio (width/height).
glm::vec3	get_location () const
	Returns the camera's position in world space.
glm::vec3	get_target () const
	Returns the camera's target position in world space.
bool	is_dirty () const
	Returns the camera's position in world space.
void	set_fov (float deg)
	Set the fov object.
void	set_near_plane (float np)
	Set the near clipping plane distance.
void	set_far_plane (float fp)
	Set the far clipping plane distance.
void	set_aspect_ratio (float ar)
	Set the aspect ratio of the camera.
void	set_location (const glm::vec3 &p)
	Set the camera's position in world space.
void	set_target (const glm::vec3 &t)
	Set the camera's target position in world space.
const Matrix4x4 &	get_projection_matrix () const
	Get the projection matrix object.
const Matrix4x4 &	get_view_matrix () const
	Get the view matrix object.
const Matrix4x4 &	get_vp_matrix () const
	Get the vp matrix object.
glm::vec3	get_view_direction () const
	Get the view direction object.
glm::vec3	get_right_direction () const
	Get the right direction object.
glm::vec3	get_up_direction () const
	Get the up direction object.
glm::vec3	project_to_ndc (const glm::vec4 &worldPos) const
vertex_t	calculate_normal (const vertex_t &v1, const vertex_t &v2, const vertex_t &v3)
	Calculate the normal vector of a face defined by three vertices.
bool	is_face_visible (const vertex_t &v1, const vertex_t &v2, const vertex_t &v3)
	Check if a face defined by three vertices is visible from the camera's perspective.
void	log_camera_info () const
	Logs the camera's properties for debugging purposes.
Public Member Functions inherited from Ragot::Component
	Component ()=default
	Default constructor for the Component class.
virtual	~Component ()=default
	Default virtual destructor for the Component class.
	Component (const Component &)=delete
	Deleted copy constructor for the Component class.
	Component (const Component &&)=delete
	Deleted move constructor for the Component class.
Component &	operator= (const Component &)=delete
	Deleted assignment operator for the Component class.
Component &	operator= (const Component &&)=delete
	Deleted move assignment operator for the Component class.
void	add_component (std::shared_ptr< Component > component)
	Adds a component to the collection.
void	remove_component (std::shared_ptr< Component > component)
	Removes a component from the collection.
const std::vector< std::shared_ptr< Component > >	get_components () const
	Gets the collection of components.
Public Member Functions inherited from Ragot::Node
	Node ()=default
	Default constructor for Node. Initializes an empty node with no parent and no children.
virtual	~Node ()=default
	Default destructor for Node. Cleans up the node and its children.
	Node (const Node &)=delete
	Deleted copy constructor for Node. Prevents copying of Node instances.
	Node (const Node &&)=delete
	Deleted move constructor for Node. Prevents moving of Node instances.
Node &	operator= (const Node &)=delete
	Deleted assignment operator for Node. Prevents assignment of Node instances.
Node &	operator= (const Node &&)=delete
	Deleted move assignment operator for Node. Prevents moving of Node instances.
void	add_child (std::shared_ptr< Node > child)
	Get the parent node.
void	remove_child (std::shared_ptr< Node > child)
	Remove a child node.
const std::vector< std::shared_ptr< Node > > &	get_children () const
	Get the parent node.
mat4	get_transform_matrix () override
	Get the transform matrix object.
Public Member Functions inherited from Ragot::Transform
	Transform ()
	Default constructor for the Transform class.
virtual	~Transform ()=default
	Virtual destructor for the Transform class.
void	set_position (const vec3 &pos)
	Sets the position of the object.
vec3	get_position () const
	Gets the current position of the object.
void	set_rotation (const vec3 &rot)
	Moves the object by a specified vector.
vec3	get_rotation () const
	Gets the current rotation of the object.
void	rotate (const float angle, const vec3 &axis)
	Rotates the object by a specified angle around a given axis.
void	set_scale (const vec3 &scale)
	Sets the scale of the object.
vec3	get_scale () const
	Sets the scale of the object uniformly.
bool	is_dirty () const
	Checks if the transformation matrix is dirty (needs recalculation).

Private Attributes
float	fov
	vertical field of view in degrees
float	near_plane
	near clipping plane distance
float	far_plane
	far clipping plane distance
float	aspect_ratio
	aspect ratio (width/height)
glm::vec3	target
	world space look-at target
Matrix4x4	projection_matrix
	cached projection matrix
Matrix4x4	view_matrix
	cached view matrix
Matrix4x4	vp_matrix
	cached view-projection matrix
bool	projDirty = true
	flag to indicate if projection matrix is dirty
bool	viewDirty = true
	flag to indicate if view matrix is dirty
bool	vpDirty = true
	flag to indicate if view-projection matrix is dirty

Static Private Attributes
static const char *	CAMERA_TAG = "Camera"
	Tag for logging camera-related messages.

Additional Inherited Members
Protected Attributes inherited from Ragot::Component
std::vector< std::shared_ptr< Component > >	components
	Collection of components managed by this Component instance.
Protected Attributes inherited from Ragot::Node
std::vector< std::shared_ptr< Node > >	children
	List of child nodes.
Node *	parent = nullptr
	Pointer to the parent node.
Protected Attributes inherited from Ragot::Transform
vec3	position
	The position of the object in 3D space.
vec3	rotation
	The rotation of the object in degrees around each axis (x, y, z).
vec3	scale
	The scale of the object in 3D space, default is (1, 1, 1).
bool	dirty = true
	Flag indicating whether the transformation matrix needs to be recalculated.

Detailed Description

Represents a camera in a 3D space, managing its properties and transformations.

The Camera class provides functionality to set and get camera properties such as field of view, near and far planes, aspect ratio, and target position. It also computes projection, view, and combined view-projection matrices, and provides methods for projecting world coordinates to normalized device coordinates (NDC).

Member Typedef Documentation

Matrix4x4

using Ragot::Camera::Matrix4x4 = glm::mat4

Constructor & Destructor Documentation

Camera() [1/2]

Ragot::Camera::Camera ( )

delete

Delete default constructor to prevent instantiation without parameters.

Camera() [2/2]

Ragot::Camera::Camera ( float aspect_ratio = 1.f, float near_plane = 1.f, float far_plane = 100.f, float fov_deg = 60.f )

inline

Constructs a Camera object with specified parameters.

Parameters

aspect_ratio	Aspect ratio of the camera (default is 1.0).
near_plane	Distance to the near clipping plane (default is 1.0).
far_plane	Distance to the far clipping plane (default is 100.0).
fov_deg	Vertical field of view in degrees (default is 60.0).

Here is the call graph for this function:

~Camera()

Ragot::Camera::~Camera ( )

default

Default destructor for Camera class.

Member Function Documentation

calculate_normal()

vertex_t Ragot::Camera::calculate_normal	(	const vertex_t &	v1,
		const vertex_t &	v2,
		const vertex_t &	v3 )

Calculate the normal vector of a face defined by three vertices.

Parameters

v1	First vertex of the face.
v2	Second vertex of the face.
v3	Third vertex of the face.

Returns

vertex_t

Here is the caller graph for this function:

get_aspect_ratio()

float Ragot::Camera::get_aspect_ratio ( ) const

inline

Returns the camera's aspect ratio (width/height).

Returns

float The aspect ratio of the camera.

get_far_plane()

float Ragot::Camera::get_far_plane ( ) const

inline

Returns the camera's far clipping plane distance.

Returns

float The distance to the far clipping plane.

get_fov()

float Ragot::Camera::get_fov ( ) const

inline

Returns the camera's field of view in degrees.

Returns

float The field of view in degrees.

get_location()

glm::vec3 Ragot::Camera::get_location ( ) const

inline

Returns the camera's position in world space.

Returns

glm::vec3 The position of the camera.

Here is the call graph for this function:

get_near_plane()

float Ragot::Camera::get_near_plane ( ) const

inline

Returns the camera's near clipping plane distance.

Returns

float The distance to the near clipping plane.

get_projection_matrix()

const Matrix4x4 & Ragot::Camera::get_projection_matrix ( ) const

inline

Get the projection matrix object.

Returns

const Matrix4x4&

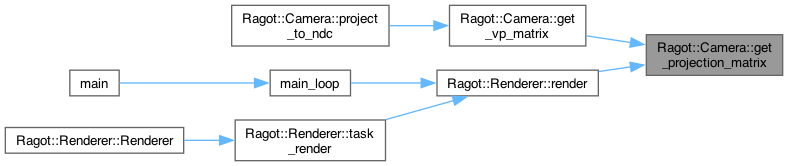

Here is the caller graph for this function:

get_right_direction()

glm::vec3 Ragot::Camera::get_right_direction ( ) const

inline

Get the right direction object.

Returns

glm::vec3

Here is the call graph for this function:

Here is the caller graph for this function:

get_target()

glm::vec3 Ragot::Camera::get_target ( ) const

inline

Returns the camera's target position in world space.

Returns

glm::vec3 The target position of the camera.

get_up_direction()

glm::vec3 Ragot::Camera::get_up_direction ( ) const

inline

Get the up direction object.

Returns

glm::vec3

Here is the call graph for this function:

get_view_direction()

glm::vec3 Ragot::Camera::get_view_direction ( ) const

inline

Get the view direction object.

Returns

glm::vec3

Here is the call graph for this function:

Here is the caller graph for this function:

get_view_matrix()

const Matrix4x4 & Ragot::Camera::get_view_matrix ( ) const

inline

Get the view matrix object.

Returns

const Matrix4x4&

Here is the call graph for this function:

Here is the caller graph for this function:

get_vp_matrix()

const Matrix4x4 & Ragot::Camera::get_vp_matrix ( ) const

inline

Get the vp matrix object.

Returns

const Matrix4x4&

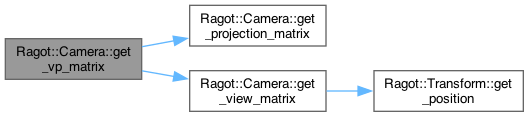

Here is the call graph for this function:

Here is the caller graph for this function:

is_dirty()

bool Ragot::Camera::is_dirty ( ) const

inline

Returns the camera's position in world space.

Returns

glm::vec3 The position of the camera.

is_face_visible()

bool Ragot::Camera::is_face_visible	(	const vertex_t &	v1,
		const vertex_t &	v2,
		const vertex_t &	v3 )

Check if a face defined by three vertices is visible from the camera's perspective.

A face is considered visible if its normal vector points towards the camera.

Parameters

v1	First vertex of the face.
v2	Second vertex of the face.
v3	Third vertex of the face.

Returns

true if the face is visible, false otherwise.

Here is the call graph for this function:

log_camera_info()

void Ragot::Camera::log_camera_info

(

)

const

Logs the camera's properties for debugging purposes.

This method logs the camera's position, target, field of view, near and far planes, and aspect ratio.

project_to_ndc()

glm::vec3 Ragot::Camera::project_to_ndc ( const glm::vec4 & worldPos ) const

inline

Parameters

worldPos

Returns

glm::vec3

Here is the call graph for this function:

set_aspect_ratio()

void Ragot::Camera::set_aspect_ratio ( float ar )

inline

Set the aspect ratio of the camera.

Parameters

ar	Aspect ratio (width/height).

set_far_plane()

void Ragot::Camera::set_far_plane ( float fp )

inline

Set the far clipping plane distance.

Parameters

fp	Distance to the far clipping plane.

set_fov()

void Ragot::Camera::set_fov ( float deg )

inline

Set the fov object.

Parameters

deg	Field of view in degrees.

set_location()

void Ragot::Camera::set_location ( const glm::vec3 & p )

inline

Set the camera's position in world space.

Parameters

p	Position of the camera.

Here is the call graph for this function:

Here is the caller graph for this function:

set_near_plane()

void Ragot::Camera::set_near_plane ( float np )

inline

Set the near clipping plane distance.

Parameters

np	Distance to the near clipping plane.

set_target()

void Ragot::Camera::set_target ( const glm::vec3 & t )

inline

Set the camera's target position in world space.

Parameters

t	Target position of the camera.

Here is the caller graph for this function:

Member Data Documentation

aspect_ratio

float Ragot::Camera::aspect_ratio

private

aspect ratio (width/height)

CAMERA_TAG

const char * Ragot::Camera::CAMERA_TAG = "Camera"

staticprivate

Tag for logging camera-related messages.

far_plane

float Ragot::Camera::far_plane

private

far clipping plane distance

fov

float Ragot::Camera::fov

private

vertical field of view in degrees

near_plane

float Ragot::Camera::near_plane

private

near clipping plane distance

projDirty

bool Ragot::Camera::projDirty = true

mutableprivate

flag to indicate if projection matrix is dirty

projection_matrix

Matrix4x4 Ragot::Camera::projection_matrix

mutableprivate

cached projection matrix

target

glm::vec3 Ragot::Camera::target

private

world space look-at target

view_matrix

Matrix4x4 Ragot::Camera::view_matrix

mutableprivate

cached view matrix

viewDirty

bool Ragot::Camera::viewDirty = true

mutableprivate

flag to indicate if view matrix is dirty

vp_matrix

Matrix4x4 Ragot::Camera::vp_matrix

mutableprivate

cached view-projection matrix

vpDirty

bool Ragot::Camera::vpDirty = true

mutableprivate

flag to indicate if view-projection matrix is dirty

---

The documentation for this class was generated from the following files:

• main/Camera.hpp
• main/Camera.cpp
