Ragot::FrameBuffer< Color > Class Template Reference

Class to manage a frame buffer for rendering graphics. More...

#include <FrameBuffer.hpp>

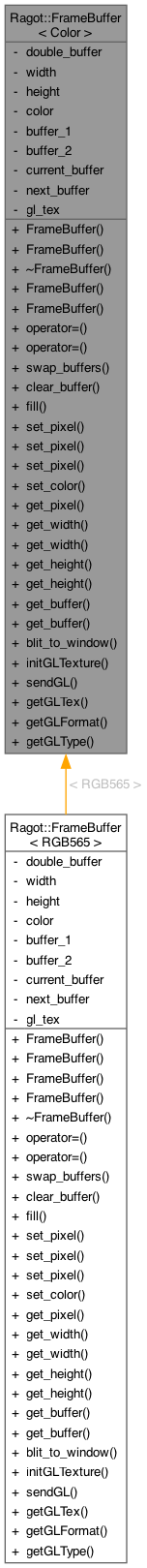

Inheritance diagram for Ragot::FrameBuffer< Color >:

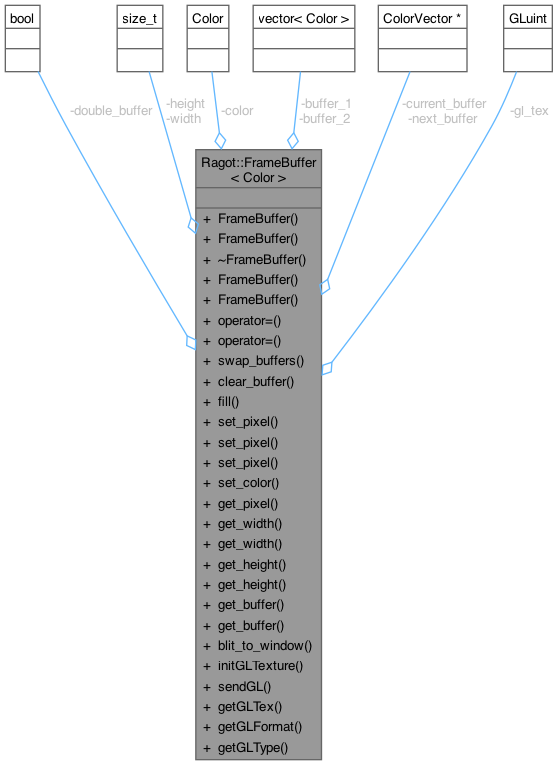

Collaboration diagram for Ragot::FrameBuffer< Color >:

Public Types
using	TYPE = Color
using	ColorVector = std::vector < Color >

Public Member Functions
	FrameBuffer (size_t width, size_t height, bool double_buffer)
	Constructor for the FrameBuffer class.
	FrameBuffer ()=delete
	Default constructor for the FrameBuffer class (Deleted).
	~FrameBuffer ()=default
	Default destructor for the FrameBuffer class.
	FrameBuffer (const FrameBuffer &)=delete
	Construct a new Frame Buffer object (Deleted).
	FrameBuffer (const FrameBuffer &&)=delete
	Construct a new Frame Buffer object (Deleted).
FrameBuffer &	operator= (const FrameBuffer &)=delete
	Assignment operator for the FrameBuffer class (Deleted).
FrameBuffer &	operator= (const FrameBuffer &&)=delete
	Assignment operator for the FrameBuffer class (Deleted).
void	swap_buffers ()
	Swaps the current buffer with the next buffer.
void	clear_buffer (Buffer buffer_to_clear=NEXT_BUFFER)
	Clears the specified buffer by filling it with the default color.
void	fill (Color color=0, Buffer buffer_to_fill=NEXT_BUFFER)
	Fills the specified buffer with the given color.
void	set_pixel (size_t x, size_t y, Color color)
	Sets a pixel at the specified coordinates to the given color.
void	set_pixel (size_t offset, Color color)
	Sets a pixel at the specified offset in the buffer to the given color.
void	set_pixel (size_t offset)
	Sets a pixel at the specified offset in the buffer to the default color.
void	set_color (Color color)
	Sets the default color for the frame buffer.
Color	get_pixel (size_t x, size_t y) const
	Gets the color of a pixel at the specified coordinates.
size_t	get_width ()
	Gets the color of a pixel at the specified offset in the buffer.
size_t	get_width () const
	Gets the width of the frame buffer.
size_t	get_height ()
	Gets the height of the frame buffer.
size_t	get_height () const
	Gets the height of the frame buffer.
const Color *	get_buffer () const
	Gets the current buffer being used.
Color *	get_buffer ()
	Get the buffer object.
void	blit_to_window () const
	Blits the current buffer to the window. This method copies the contents of the current buffer to the next buffer, effectively preparing the next frame for rendering.
void	initGLTexture ()
	Initializes the OpenGL texture for the frame buffer.
void	sendGL () const
	Clears the OpenGL texture associated with the frame buffer.
GLuint	getGLTex () const
	Gets the OpenGL texture ID for the frame buffer.

Static Public Member Functions
static GLenum	getGLFormat ()
	Sets the OpenGL texture for the frame buffer.
static GLenum	getGLType ()
	Gets the OpenGL type for the frame buffer.

Private Attributes
bool	double_buffer
	Flag to indicate if double buffering is enabled.
size_t	width
	Width of the frame buffer in pixels.
size_t	height
	Height of the frame buffer in pixels.
Color	color
	Default color for filling the buffer.
ColorVector	buffer_1
	First buffer for single or double buffering.
ColorVector	buffer_2
	Second buffer for double buffering (if enabled)
ColorVector *	current_buffer
	Pointer to the current buffer being used.
ColorVector *	next_buffer
	Pointer to the next buffer to be used (for double buffering)
GLuint	gl_tex = 0
	OpenGL texture ID for the frame buffer.

Detailed Description

template<typename Color>
class Ragot::FrameBuffer< Color >

Class to manage a frame buffer for rendering graphics.

This class provides methods to create a frame buffer, swap buffers, clear the buffer, fill it with a color, set and get pixels, and manage OpenGL textures. It supports both single and double buffering modes.

Member Typedef Documentation

ColorVector

template<typename Color>

using Ragot::FrameBuffer< Color >::ColorVector = std::vector < Color >

TYPE

template<typename Color>

using Ragot::FrameBuffer< Color >::TYPE = Color

Constructor & Destructor Documentation

FrameBuffer() [1/4]

template<typename Color>

Ragot::FrameBuffer< Color >::FrameBuffer	(	size_t	width,
		size_t	height,
		bool	double_buffer )

Constructor for the FrameBuffer class.

Initializes the frame buffer with the specified width, height, and double buffering option. Allocates memory for the buffers and fills them with the default color.

Parameters

width	Width of the frame buffer in pixels.
height	Height of the frame buffer in pixels.
double_buffer	Flag to indicate if double buffering is enabled.

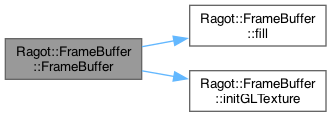

Here is the call graph for this function:

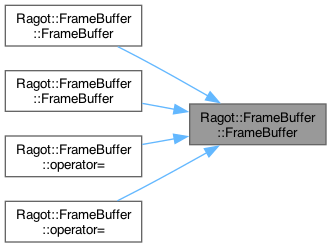

Here is the caller graph for this function:

FrameBuffer() [2/4]

template<typename Color>

Ragot::FrameBuffer< Color >::FrameBuffer ( )

delete

Default constructor for the FrameBuffer class (Deleted).

~FrameBuffer()

template<typename Color>

Ragot::FrameBuffer< Color >::~FrameBuffer ( )

default

Default destructor for the FrameBuffer class.

Cleans up resources used by the frame buffer.

FrameBuffer() [3/4]

template<typename Color>

Ragot::FrameBuffer< Color >::FrameBuffer ( const FrameBuffer< Color > & )

delete

Construct a new Frame Buffer object (Deleted).

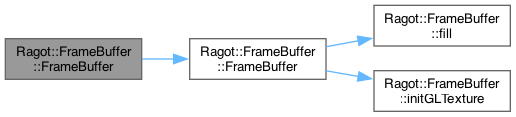

Here is the call graph for this function:

FrameBuffer() [4/4]

template<typename Color>

Ragot::FrameBuffer< Color >::FrameBuffer ( const FrameBuffer< Color > && )

delete

Construct a new Frame Buffer object (Deleted).

Here is the call graph for this function:

Member Function Documentation

blit_to_window()

template<typename Color>

void Ragot::FrameBuffer< Color >::blit_to_window ( ) const

inline

Blits the current buffer to the window. This method copies the contents of the current buffer to the next buffer, effectively preparing the next frame for rendering.

clear_buffer()

template<typename Color>

void Ragot::FrameBuffer< Color >::clear_buffer

(

Buffer

buffer_to_clear = NEXT_BUFFER

)

Clears the specified buffer by filling it with the default color.

Parameters

buffer_to_clear

The buffer to clear (CURRENT_BUFFER, NEXT_BUFFER, or MAX_BUFFER).

Here is the call graph for this function:

fill()

template<typename Color>

void Ragot::FrameBuffer< Color >::fill	(	Color	color = 0,
		Buffer	buffer_to_fill = NEXT_BUFFER )

Fills the specified buffer with the given color.

Parameters

color	The color to fill the buffer with (default is 0).
buffer_to_fill	The buffer to fill (CURRENT_BUFFER, NEXT_BUFFER, or MAX_BUFFER).

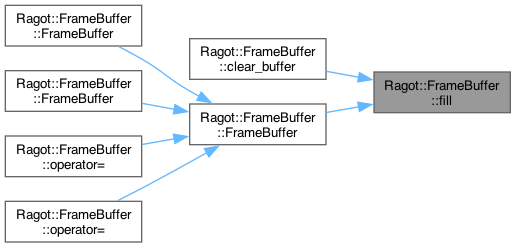

Here is the caller graph for this function:

get_buffer() [1/2]

template<typename Color>

Color * Ragot::FrameBuffer< Color >::get_buffer ( )

inline

Get the buffer object.

Returns

Color*

get_buffer() [2/2]

template<typename Color>

const Color * Ragot::FrameBuffer< Color >::get_buffer ( ) const

inline

Gets the current buffer being used.

Returns

const Color* Pointer to the current buffer data.

get_height() [1/2]

template<typename Color>

size_t Ragot::FrameBuffer< Color >::get_height ( )

inline

Gets the height of the frame buffer.

Returns

size_t The height of the frame buffer in pixels.

get_height() [2/2]

template<typename Color>

size_t Ragot::FrameBuffer< Color >::get_height ( ) const

inline

Gets the height of the frame buffer.

Returns

size_t The height of the frame buffer in pixels.

get_pixel()

template<typename Color>

Color Ragot::FrameBuffer< Color >::get_pixel	(	size_t	x,
		size_t	y ) const

Gets the color of a pixel at the specified coordinates.

Parameters

x	X coordinate of the pixel.
y	Y coordinate of the pixel.

Returns

Color The color of the pixel at the specified coordinates.

get_width() [1/2]

template<typename Color>

size_t Ragot::FrameBuffer< Color >::get_width ( )

inline

Gets the color of a pixel at the specified offset in the buffer.

Parameters

offset

Offset in the buffer (calculated as y * width + x).

Returns

Color The color of the pixel at the specified offset.

get_width() [2/2]

template<typename Color>

size_t Ragot::FrameBuffer< Color >::get_width ( ) const

inline

Gets the width of the frame buffer.

Returns

size_t The width of the frame buffer in pixels.

getGLFormat()

template<typename Color>

GLenum Ragot::FrameBuffer< Color >::getGLFormat ( )

static

Sets the OpenGL texture for the frame buffer.

This method binds the OpenGL texture to the current context.

getGLTex()

template<typename Color>

GLuint Ragot::FrameBuffer< Color >::getGLTex ( ) const

inline

Gets the OpenGL texture ID for the frame buffer.

Returns

GLuint The OpenGL texture ID.

getGLType()

template<typename Color>

GLenum Ragot::FrameBuffer< Color >::getGLType ( )

static

Gets the OpenGL type for the frame buffer.

This method returns the OpenGL type corresponding to the color format used in the frame buffer.

Returns

GLenum The OpenGL type for the frame buffer.

initGLTexture()

template<typename Color>

void Ragot::FrameBuffer< Color >::initGLTexture

(

)

Initializes the OpenGL texture for the frame buffer.

This method creates an OpenGL texture and binds it to the frame buffer.

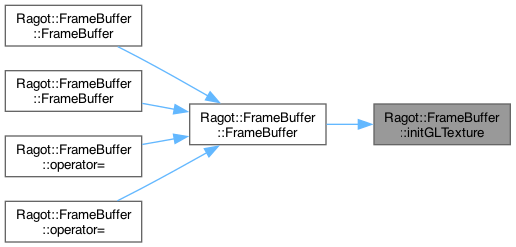

Here is the caller graph for this function:

operator=() [1/2]

template<typename Color>

FrameBuffer & Ragot::FrameBuffer< Color >::operator= ( const FrameBuffer< Color > && )

delete

Assignment operator for the FrameBuffer class (Deleted).

Prevents assignment of FrameBuffer objects.

Returns

FrameBuffer& Reference to the current object.

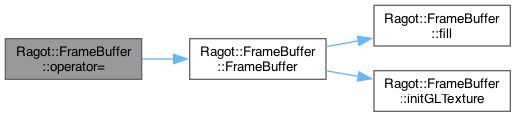

Here is the call graph for this function:

operator=() [2/2]

template<typename Color>

FrameBuffer & Ragot::FrameBuffer< Color >::operator= ( const FrameBuffer< Color > & )

delete

Assignment operator for the FrameBuffer class (Deleted).

Prevents assignment of FrameBuffer objects.

Returns

FrameBuffer& Reference to the current object.

Here is the call graph for this function:

sendGL()

template<typename Color>

void Ragot::FrameBuffer< Color >::sendGL

(

)

const

Clears the OpenGL texture associated with the frame buffer.

This method deletes the OpenGL texture to free up resources.

set_color()

template<typename Color>

void Ragot::FrameBuffer< Color >::set_color

(

Color

color

)

Sets the default color for the frame buffer.

Parameters

color

The color to set as the default.

set_pixel() [1/3]

template<typename Color>

void Ragot::FrameBuffer< Color >::set_pixel

(

size_t

offset

)

Sets a pixel at the specified offset in the buffer to the default color.

Parameters

offset

Offset in the buffer (calculated as y * width + x).

set_pixel() [2/3]

template<typename Color>

void Ragot::FrameBuffer< Color >::set_pixel	(	size_t	offset,
		Color	color )

Sets a pixel at the specified offset in the buffer to the given color.

Parameters

offset	Offset in the buffer (calculated as y * width + x).
color	Color value for the pixel.

set_pixel() [3/3]

template<typename Color>

void Ragot::FrameBuffer< Color >::set_pixel	(	size_t	x,
		size_t	y,
		Color	color )

Sets a pixel at the specified coordinates to the given color.

Parameters

x	X coordinate of the pixel.
y	Y coordinate of the pixel.
color	Color value for the pixel.

swap_buffers()

template<typename Color>

void Ragot::FrameBuffer< Color >::swap_buffers

(

)

Swaps the current buffer with the next buffer.

This method is used in double buffering to switch between the buffers for rendering.

Member Data Documentation

buffer_1

template<typename Color>

ColorVector Ragot::FrameBuffer< Color >::buffer_1

private

First buffer for single or double buffering.

buffer_2

template<typename Color>

ColorVector Ragot::FrameBuffer< Color >::buffer_2

private

Second buffer for double buffering (if enabled)

color

template<typename Color>

Color Ragot::FrameBuffer< Color >::color

private

Default color for filling the buffer.

current_buffer

template<typename Color>

ColorVector* Ragot::FrameBuffer< Color >::current_buffer

private

Pointer to the current buffer being used.

double_buffer

template<typename Color>

bool Ragot::FrameBuffer< Color >::double_buffer

private

Flag to indicate if double buffering is enabled.

gl_tex

template<typename Color>

GLuint Ragot::FrameBuffer< Color >::gl_tex = 0

private

OpenGL texture ID for the frame buffer.

This variable holds the OpenGL texture ID used for rendering the frame buffer.

height

template<typename Color>

size_t Ragot::FrameBuffer< Color >::height

private

Height of the frame buffer in pixels.

next_buffer

template<typename Color>

ColorVector* Ragot::FrameBuffer< Color >::next_buffer

private

Pointer to the next buffer to be used (for double buffering)

width

template<typename Color>

size_t Ragot::FrameBuffer< Color >::width

private

Width of the frame buffer in pixels.

---

The documentation for this class was generated from the following files:

• main/FrameBuffer.hpp
• main/FrameBuffer.cpp
