Ragot::Scene Class Reference

Class for managing a 3D scene. More...

#include <Scene.hpp>

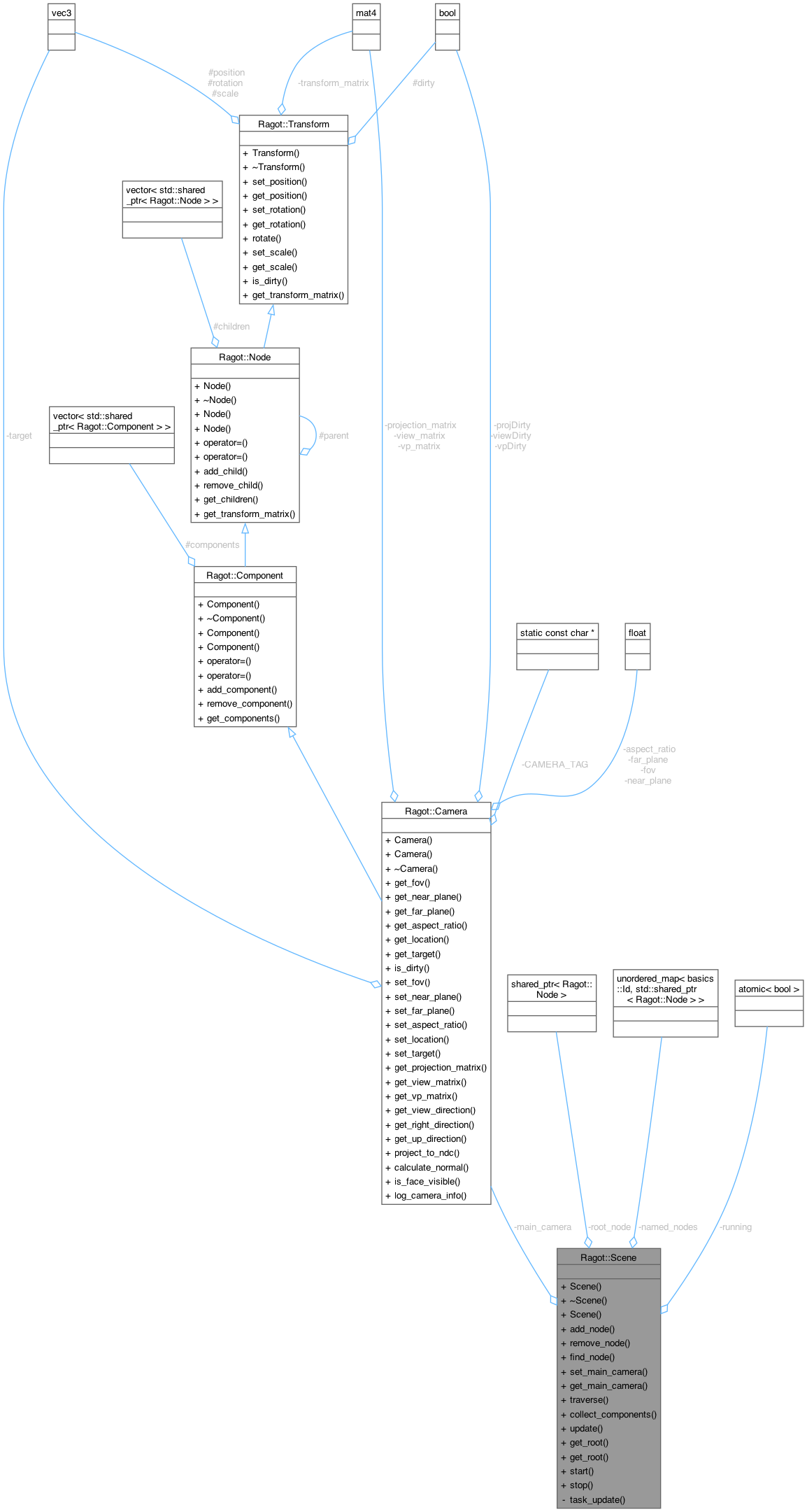

Collaboration diagram for Ragot::Scene:

Public Member Functions
	Scene ()
	Default constructor for the Scene class.
	~Scene ()=default
	Destructor for the Scene class.
	Scene (Camera *camera)
	Construct a new Scene object.
void	add_node (std::shared_ptr< Node > node, const basics::Id name)
	Adds a node to the scene with a specified name.
void	remove_node (std::shared_ptr< Node > node)
	Removes a node from the scene.
std::shared_ptr< Node >	find_node (const basics::Id name)
	Finds a node in the scene by its name.
void	set_main_camera (Camera *camera)
	Sets the main camera for the scene.
Camera *	get_main_camera () const
	Gets the main camera of the scene.
void	traverse (const std::function< void(std::shared_ptr< Node >) > &callback)
	Traverses the scene graph and applies a callback function to each node.
template<typename T>
std::vector< std::shared_ptr< T > >	collect_components ()
	Collects all components of a specified type from the scene.
void	update (float delta_time)
	Updates the scene with a specified delta time.
std::shared_ptr< Node >	get_root ()
	Get the root object.
const std::shared_ptr< Node >	get_root () const
	Get the root object.
void	start ()
	Starts the scene, setting the running flag to true.
void	stop ()
	Stops the scene, setting the running flag to false.

Private Member Functions
void	task_update (std::stop_token, float delta_time)
	Task to update the scene in a separate thread.

Private Attributes
Camera *	main_camera = nullptr
	Pointer to the main camera used for rendering the scene.
std::shared_ptr< Node >	root_node
	Shared pointer to the root node of the scene graph.
std::unordered_map< basics::Id, std::shared_ptr< Node > >	named_nodes
	Map of named nodes for quick access by name.
std::atomic< bool >	running = false
	Flag indicating whether the scene is currently running or not.

Detailed Description

Class for managing a 3D scene.

The Scene class provides methods to manage nodes, cameras, and scene traversal. It allows adding and removing nodes, setting the main camera, and traversing the scene graph.

Constructor & Destructor Documentation

Scene() [1/2]

Ragot::Scene::Scene

(

)

Default constructor for the Scene class.

Initializes the scene with a root node and prepares it for use.

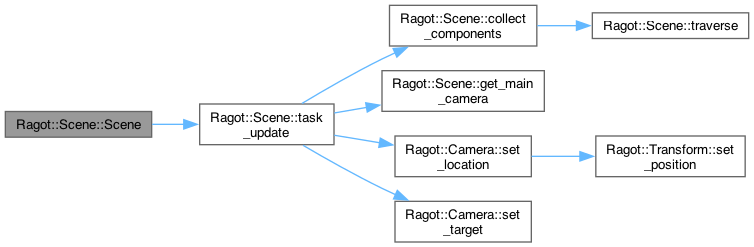

Here is the call graph for this function:

~Scene()

Ragot::Scene::~Scene ( )

default

Destructor for the Scene class.

Scene() [2/2]

Ragot::Scene::Scene

(

Camera *

camera

)

Construct a new Scene object.

Parameters

camera

Pointer to the Camera object to be used as the main camera for the scene.

Here is the call graph for this function:

Member Function Documentation

add_node()

void Ragot::Scene::add_node	(	std::shared_ptr< Node >	node,
		const basics::Id	name )

Adds a node to the scene with a specified name.

Parameters

node	Shared pointer to the Node object to be added to the scene.
name	Unique identifier for the node, used for quick access.

collect_components()

template<typename T>

template std::vector< std::shared_ptr< Camera > > Ragot::Scene::collect_components< Camera >

(

)

Collects all components of a specified type from the scene.

This method traverses the scene graph and collects all components of the specified type.

Template Parameters

T	The type of component to collect.

Returns

std::vector<std::shared_ptr<T>> A vector containing shared pointers to the collected components.

Here is the call graph for this function:

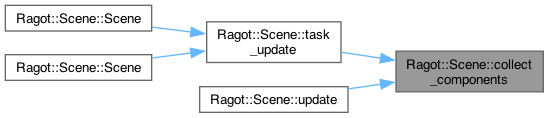

Here is the caller graph for this function:

find_node()

std::shared_ptr< Node > Ragot::Scene::find_node

(

const basics::Id

name

)

Finds a node in the scene by its name.

Parameters

name	Unique identifier for the node to be found.

Returns

std::shared_ptr<Node> Shared pointer to the found Node object, or nullptr if not found.

get_main_camera()

Camera * Ragot::Scene::get_main_camera ( ) const

inline

Gets the main camera of the scene.

Returns

Camera* Pointer to the main Camera object used for rendering the scene.

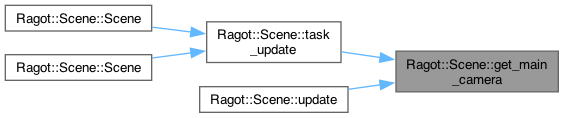

Here is the caller graph for this function:

get_root() [1/2]

std::shared_ptr< Node > Ragot::Scene::get_root ( )

inline

Get the root object.

Returns

std::shared_ptr < Node >

get_root() [2/2]

const std::shared_ptr< Node > Ragot::Scene::get_root ( ) const

inline

Get the root object.

Returns

const std::shared_ptr < Node >

remove_node()

void Ragot::Scene::remove_node

(

std::shared_ptr< Node >

node

)

Removes a node from the scene.

Parameters

node	Shared pointer to the Node object to be removed from the scene.

set_main_camera()

void Ragot::Scene::set_main_camera

(

Camera *

camera

)

Sets the main camera for the scene.

Parameters

camera

Pointer to the Camera object to be set as the main camera for the scene.

start()

void Ragot::Scene::start ( )

inline

Starts the scene, setting the running flag to true.

This method is used to indicate that the scene is active and should be updated.

Here is the caller graph for this function:

stop()

void Ragot::Scene::stop ( )

inline

Stops the scene, setting the running flag to false.

This method is used to indicate that the scene is no longer active and should not be updated.

task_update()

void Ragot::Scene::task_update ( std::stop_token stop_token, float delta_time )

private

Task to update the scene in a separate thread.

This method runs in a separate thread and updates the scene based on the delta time. It uses a stop token to allow for graceful termination of the task.

Parameters

stop_token	Token to signal when the task should stop.
delta_time	The time elapsed since the last update, in seconds.

< Espera inicial para asegurar que la cámara esté lista.

< Espera inicial para asegurar que la cámara esté lista.

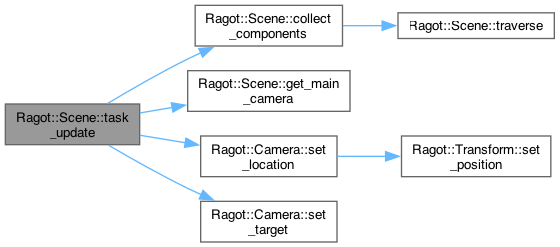

Here is the call graph for this function:

Here is the caller graph for this function:

traverse()

void Ragot::Scene::traverse

(

const std::function< void(std::shared_ptr< Node >) > &

callback

)

Traverses the scene graph and applies a callback function to each node.

This method allows for custom operations on each node in the scene graph.

Parameters

callback

Function to be called for each node in the scene graph.

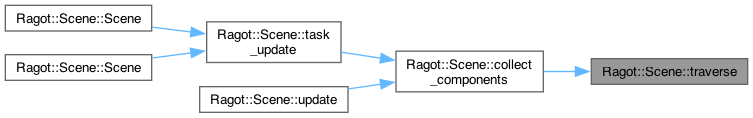

Here is the caller graph for this function:

update()

void Ragot::Scene::update

(

float

delta_time

)

Updates the scene with a specified delta time.

This method updates the scene, allowing for animations or other time-based changes.

Parameters

delta_time

The time elapsed since the last update, in seconds.

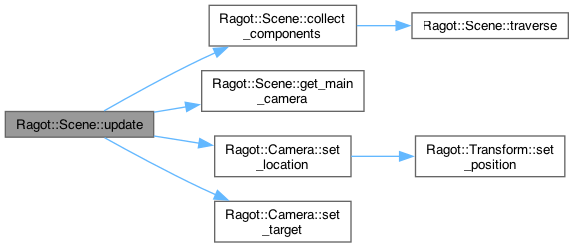

Here is the call graph for this function:

Member Data Documentation

main_camera

Camera* Ragot::Scene::main_camera = nullptr

private

Pointer to the main camera used for rendering the scene.

named_nodes

std::unordered_map<basics::Id, std::shared_ptr < Node > > Ragot::Scene::named_nodes

private

Map of named nodes for quick access by name.

root_node

std::shared_ptr< Node > Ragot::Scene::root_node

private

Shared pointer to the root node of the scene graph.

running

std::atomic<bool> Ragot::Scene::running = false

private

Flag indicating whether the scene is currently running or not.

---

The documentation for this class was generated from the following files:

• main/Scene.hpp
• main/Scene.cpp
