Ragot::Transform Class Reference

A class representing a 3D transformation with position, rotation, and scale. More...

#include <Transform.hpp>

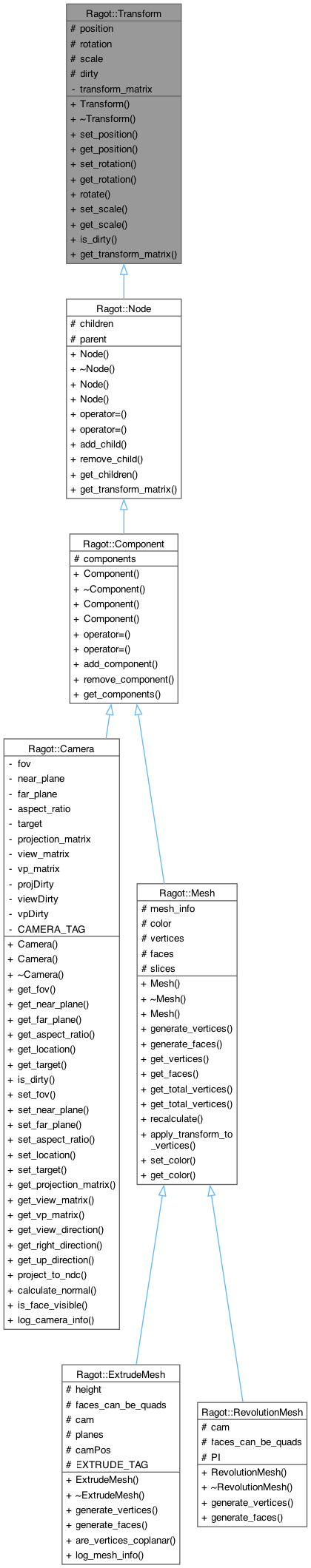

Inheritance diagram for Ragot::Transform:

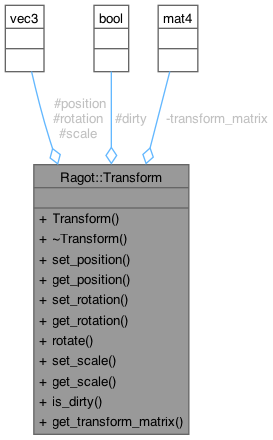

Collaboration diagram for Ragot::Transform:

Public Member Functions
	Transform ()
	Default constructor for the Transform class.
virtual	~Transform ()=default
	Virtual destructor for the Transform class.
void	set_position (const vec3 &pos)
	Sets the position of the object.
vec3	get_position () const
	Gets the current position of the object.
void	set_rotation (const vec3 &rot)
	Moves the object by a specified vector.
vec3	get_rotation () const
	Gets the current rotation of the object.
void	rotate (const float angle, const vec3 &axis)
	Rotates the object by a specified angle around a given axis.
void	set_scale (const vec3 &scale)
	Sets the scale of the object.
vec3	get_scale () const
	Sets the scale of the object uniformly.
bool	is_dirty () const
	Checks if the transformation matrix is dirty (needs recalculation).
virtual mat4	get_transform_matrix ()
	Gets the transformation matrix that combines position, rotation, and scale.

Protected Attributes
vec3	position
	The position of the object in 3D space.
vec3	rotation
	The rotation of the object in degrees around each axis (x, y, z).
vec3	scale
	The scale of the object in 3D space, default is (1, 1, 1).
bool	dirty = true
	Flag indicating whether the transformation matrix needs to be recalculated.

Private Attributes
mat4	transform_matrix
	The transformation matrix that combines position, rotation, and scale.

Detailed Description

A class representing a 3D transformation with position, rotation, and scale.

This class provides methods to set and get the position, rotation, and scale of a 3D object. It also provides a method to get the transformation matrix that combines these transformations.

Constructor & Destructor Documentation

Transform()

Ragot::Transform::Transform ( )

inline

Default constructor for the Transform class.

Initializes position to (0, 0, 0), rotation to (0, 0, 0), and scale to (1, 1, 1).

~Transform()

virtual Ragot::Transform::~Transform ( )

virtualdefault

Virtual destructor for the Transform class.

Ensures proper cleanup of derived classes.

Member Function Documentation

get_position()

vec3 Ragot::Transform::get_position ( ) const

inline

Gets the current position of the object.

Returns

vec3 The current position.

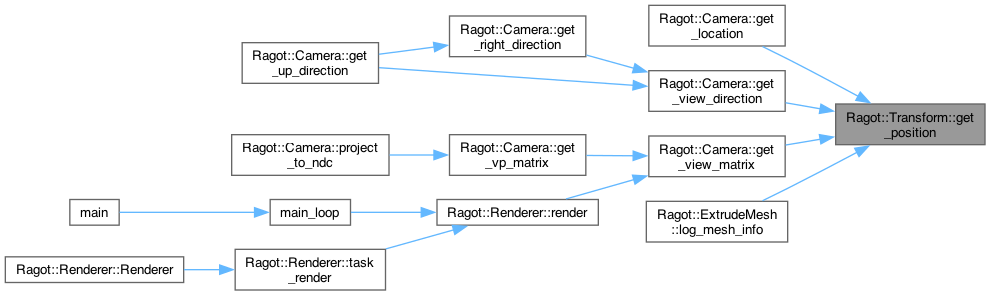

Here is the caller graph for this function:

get_rotation()

vec3 Ragot::Transform::get_rotation ( ) const

inline

Gets the current rotation of the object.

Returns

vec3 The current rotation in degrees around each axis (x, y, z).

Here is the caller graph for this function:

get_scale()

vec3 Ragot::Transform::get_scale ( ) const

inline

Sets the scale of the object uniformly.

Parameters

scale

The new uniform scale factor.

Here is the caller graph for this function:

get_transform_matrix()

virtual mat4 Ragot::Transform::get_transform_matrix ( )

inlinevirtual

Gets the transformation matrix that combines position, rotation, and scale.

This method recalculates the transformation matrix if it is dirty.

Returns

mat4 The transformation matrix.

Reimplemented in Ragot::Node.

Here is the caller graph for this function:

is_dirty()

bool Ragot::Transform::is_dirty ( ) const

inline

Checks if the transformation matrix is dirty (needs recalculation).

Returns

true if the transformation matrix is dirty, false otherwise.

rotate()

void Ragot::Transform::rotate ( const float angle, const vec3 & axis )

inline

Rotates the object by a specified angle around a given axis.

Parameters

angle	The angle in degrees to rotate.
axis	The axis around which to rotate, as a vec3.

set_position()

void Ragot::Transform::set_position ( const vec3 & pos )

inline

Sets the position of the object.

Parameters

pos	The new position as a vec3.

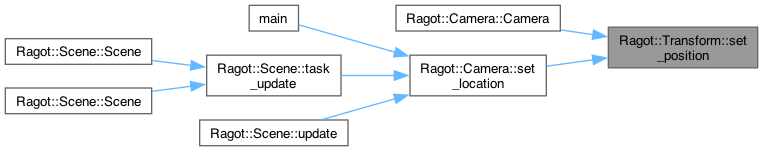

Here is the caller graph for this function:

set_rotation()

void Ragot::Transform::set_rotation ( const vec3 & rot )

inline

Moves the object by a specified vector.

Parameters

offset

The vector by which to move the object.

set_scale()

void Ragot::Transform::set_scale ( const vec3 & scale )

inline

Sets the scale of the object.

Parameters

scale

The new scale as a vec3.

Member Data Documentation

dirty

bool Ragot::Transform::dirty = true

protected

Flag indicating whether the transformation matrix needs to be recalculated.

position

vec3 Ragot::Transform::position

protected

The position of the object in 3D space.

rotation

vec3 Ragot::Transform::rotation

protected

The rotation of the object in degrees around each axis (x, y, z).

scale

vec3 Ragot::Transform::scale

protected

The scale of the object in 3D space, default is (1, 1, 1).

transform_matrix

mat4 Ragot::Transform::transform_matrix

private

The transformation matrix that combines position, rotation, and scale.

---

The documentation for this class was generated from the following file:

• main/Transform.hpp
