Driver for the EK79007 LCD panel. More...

#include <driver_ek79007.hpp>

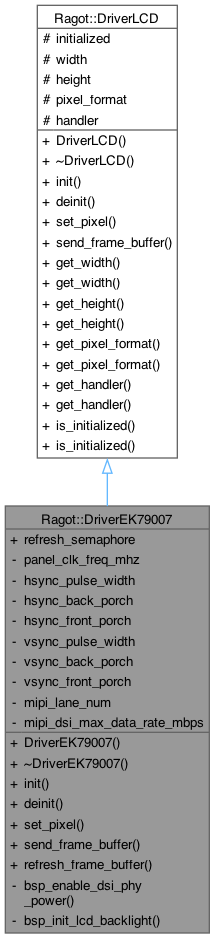

Inheritance diagram for Ragot::DriverEK79007:

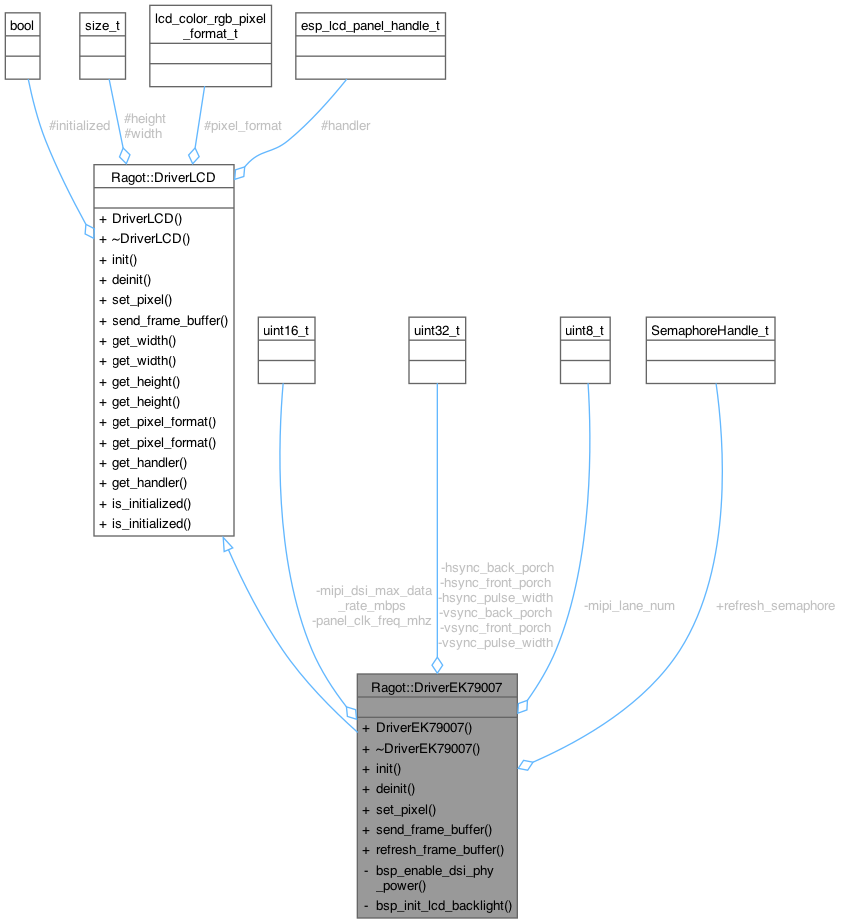

Collaboration diagram for Ragot::DriverEK79007:

Public Member Functions
	DriverEK79007 ()
	Default constructor for the DriverEK79007 class.

	~DriverEK79007 () override
	Destructor for the DriverEK79007 class.

esp_err_t	init (gpio_num_t reset_pin, gpio_num_t bk_pin) override
	Initializes the EK79007 LCD panel driver.

esp_err_t	deinit () override
	Deinitializes the EK79007 LCD panel driver.

esp_err_t	set_pixel (uint32_t x, uint32_t y, uint32_t color) override
	Sets a pixel at the specified coordinates to the given color.

esp_err_t	send_frame_buffer (const void *frame_buffer) override
	Sends a frame buffer to the EK79007 LCD panel.

IRAM_ATTR bool	refresh_frame_buffer (esp_lcd_panel_handle_t panel, esp_lcd_dpi_panel_event_data_t edata, void user_ctx)
	Refreshes the frame buffer for the EK79007 LCD panel.

Public Member Functions inherited from Ragot::DriverLCD
	DriverLCD ()=default
	Default constructor for the DriverLCD class.

virtual	~DriverLCD ()=default
	Default virtual destructor for the DriverLCD class.

const size_t	get_width () const
	Gets the width of the LCD panel.

size_t	get_width ()
	Gets the height of the LCD panel.

const size_t	get_height () const
	Gets the height of the LCD panel.

size_t	get_height ()
	Gets the height of the LCD panel.

const lcd_color_rgb_pixel_format_t	get_pixel_format () const
	Get the pixel format object.

lcd_color_rgb_pixel_format_t	get_pixel_format ()
	Get the pixel format object.

const esp_lcd_panel_handle_t	get_handler () const
	Get the handler object.

esp_lcd_panel_handle_t	get_handler ()
	Get the handler object.

const bool	is_initialized () const
	Checks if the LCD driver is initialized.

bool	is_initialized ()
	Checks if the LCD driver is initialized.

Public Attributes
SemaphoreHandle_t	refresh_semaphore
	Refresh semaphore for synchronizing frame buffer updates.

Private Member Functions
void	bsp_enable_dsi_phy_power ()
	Enables the MIPI DSI PHY power.

void	bsp_init_lcd_backlight (gpio_num_t bk_pin)
	Initializes the LCD backlight.

Private Attributes
uint16_t	panel_clk_freq_mhz
	Horizontal pixel clock frequency in MHz.

uint32_t	hsync_pulse_width
	Horizontal sync width, in pixel clock.

uint32_t	hsync_back_porch
	Horizontal back porch, number of pixel clock between hsync and start of line active data.

uint32_t	hsync_front_porch
	Horizontal front porch, number of pixel clock between the end of active data and the next hsync.

uint32_t	vsync_pulse_width
	Vertical sync width, in number of lines.

uint32_t	vsync_back_porch
	Vertical back porch, number of invalid lines between vsync and start of frame.

uint32_t	vsync_front_porch
	Vertical front porch, number of invalid lines between the end of frame and the next vsync.

uint8_t	mipi_lane_num
	Number of MIPI DSI lanes used for the panel.

uint16_t	mipi_dsi_max_data_rate_mbps
	Maximum data rate of MIPI DSI in Mbps.

Additional Inherited Members
Protected Attributes inherited from Ragot::DriverLCD
bool	initialized = false
	Flag indicating if the LCD driver is initialized.

size_t	width
	Width of the LCD panel in pixels.

size_t	height
	Height of the LCD panel in pixels.

lcd_color_rgb_pixel_format_t	pixel_format
	Pixel format of the LCD panel.

esp_lcd_panel_handle_t	handler
	Handle to the LCD panel.

Detailed Description

Driver for the EK79007 LCD panel.

This class provides methods to initialize, deinitialize, and send frame buffers to the EK79007 LCD panel. It inherits from the DriverLCD class and implements the necessary methods for LCD operations.

Constructor & Destructor Documentation

◆ DriverEK79007()

Ragot::DriverEK79007::DriverEK79007 ( )

Default constructor for the DriverEK79007 class.

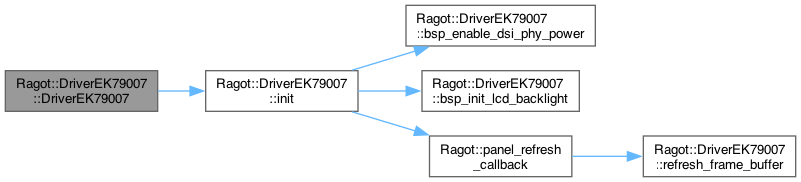

Here is the call graph for this function:

◆ ~DriverEK79007()

Ragot::DriverEK79007::~DriverEK79007 ( )

override

Destructor for the DriverEK79007 class.

Cleans up resources used by the driver.

Here is the call graph for this function:

Member Function Documentation

◆ bsp_enable_dsi_phy_power()

void Ragot::DriverEK79007::bsp_enable_dsi_phy_power ( )

private

Enables the MIPI DSI PHY power.

This method powers on the MIPI DSI PHY by acquiring the appropriate LDO channel.

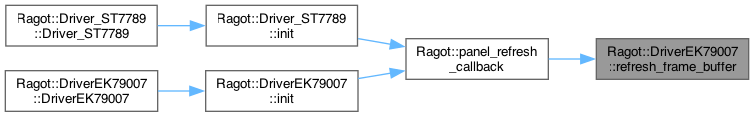

Here is the caller graph for this function:

◆ bsp_init_lcd_backlight()

void Ragot::DriverEK79007::bsp_init_lcd_backlight ( gpio_num_t bk_pin )

private

Initializes the LCD backlight.

This method configures the GPIO pin for the backlight and sets it to high to turn on the backlight.

Parameters

bk_pin GPIO pin number for the backlight control.

Here is the caller graph for this function:

◆ deinit()

esp_err_t Ragot::DriverEK79007::deinit ( )

overridevirtual

Deinitializes the EK79007 LCD panel driver.

This method cleans up resources used by the driver, including deleting the panel handler and freeing the refresh semaphore.

Returns: esp_err_t ESP_OK on success, or an error code on failure.

Implements Ragot::DriverLCD.

Here is the caller graph for this function:

◆ init()

esp_err_t Ragot::DriverEK79007::init	(	gpio_num_t	reset_pin,
		gpio_num_t	bk_pin )

overridevirtual

Initializes the EK79007 LCD panel driver.

This method sets up the panel with the specified reset and backlight GPIO pins, configures the panel parameters, and registers the refresh callback.

Parameters

reset_pin	GPIO pin for panel reset.
bk_pin	GPIO pin for backlight control.

Returns: esp_err_t ESP_OK on success, or an error code on failure.

Implements Ragot::DriverLCD.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ refresh_frame_buffer()

IRAM_ATTR bool Ragot::DriverEK79007::refresh_frame_buffer	(	esp_lcd_panel_handle_t	panel,
		esp_lcd_dpi_panel_event_data_t *	edata,
		void *	user_ctx )

Refreshes the frame buffer for the EK79007 LCD panel.

This method is called when the panel refresh is done. It handles the actual drawing of the frame buffer to the panel and releases the refresh semaphore.

Parameters

panel	Pointer to the LCD panel handle.
edata	Pointer to the event data for the DPI panel.
user_ctx	User context pointer, which is this driver instance.

Returns: true if successful, false otherwise.

Here is the caller graph for this function:

◆ send_frame_buffer()

esp_err_t Ragot::DriverEK79007::send_frame_buffer ( const void * frame_buffer )

overridevirtual

Sends a frame buffer to the EK79007 LCD panel.

This method sends the provided frame buffer to the panel for display. It waits for the refresh semaphore to be available before sending the frame buffer.

Parameters

frame_buffer Pointer to the frame buffer data.

Returns: esp_err_t ESP_OK on success, or an error code on failure.

Implements Ragot::DriverLCD.

◆ set_pixel()

esp_err_t Ragot::DriverEK79007::set_pixel	(	uint32_t	x,
		uint32_t	y,
		uint32_t	color )

inlineoverridevirtual

Sets a pixel at the specified coordinates to the given color.

This method is not implemented for the EK79007 driver and will return ESP_FAIL.

Parameters

x	X coordinate of the pixel.
y	Y coordinate of the pixel.
color	Color value to set the pixel to.

Returns: esp_err_t ESP_FAIL as this method is not implemented.

Implements Ragot::DriverLCD.

Member Data Documentation

◆ hsync_back_porch

uint32_t Ragot::DriverEK79007::hsync_back_porch

private

Horizontal back porch, number of pixel clock between hsync and start of line active data.

◆ hsync_front_porch

uint32_t Ragot::DriverEK79007::hsync_front_porch

private

Horizontal front porch, number of pixel clock between the end of active data and the next hsync.

◆ hsync_pulse_width

uint32_t Ragot::DriverEK79007::hsync_pulse_width

private

Horizontal sync width, in pixel clock.

◆ mipi_dsi_max_data_rate_mbps

uint16_t Ragot::DriverEK79007::mipi_dsi_max_data_rate_mbps

private

Maximum data rate of MIPI DSI in Mbps.

◆ mipi_lane_num

uint8_t Ragot::DriverEK79007::mipi_lane_num

private

Number of MIPI DSI lanes used for the panel.

◆ panel_clk_freq_mhz

uint16_t Ragot::DriverEK79007::panel_clk_freq_mhz

private

Horizontal pixel clock frequency in MHz.

◆ refresh_semaphore

SemaphoreHandle_t Ragot::DriverEK79007::refresh_semaphore

Refresh semaphore for synchronizing frame buffer updates.

This semaphore is used to ensure that the frame buffer is updated only when it is safe to do so.

◆ vsync_back_porch

uint32_t Ragot::DriverEK79007::vsync_back_porch

private

Vertical back porch, number of invalid lines between vsync and start of frame.

◆ vsync_front_porch

uint32_t Ragot::DriverEK79007::vsync_front_porch

private

Vertical front porch, number of invalid lines between the end of frame and the next vsync.

◆ vsync_pulse_width

uint32_t Ragot::DriverEK79007::vsync_pulse_width

private

Vertical sync width, in number of lines.

The documentation for this class was generated from the following files:

main/driver_ek79007.hpp
main/driver_ek79007.cpp
