Base class for LCD drivers. More...

#include <driver_lcd.hpp>

Inheritance diagram for Ragot::DriverLCD:

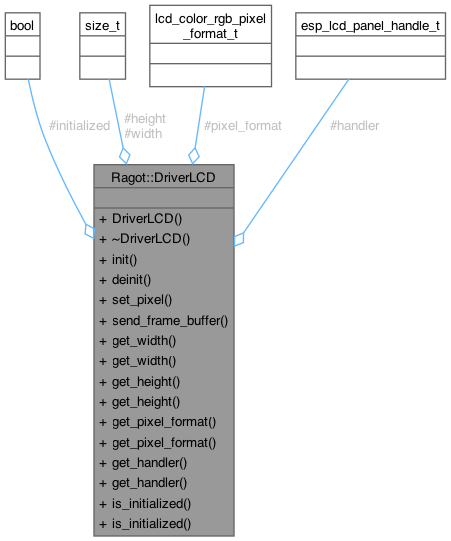

Collaboration diagram for Ragot::DriverLCD:

Public Member Functions
	DriverLCD ()=default
	Default constructor for the DriverLCD class.

virtual	~DriverLCD ()=default
	Default virtual destructor for the DriverLCD class.

virtual esp_err_t	init (gpio_num_t reset_pin, gpio_num_t bk_pin)=0
	Initializes the LCD driver with the specified reset and backlight GPIO pins.

virtual esp_err_t	deinit ()=0
	Deinitializes the LCD driver.

virtual esp_err_t	set_pixel (uint32_t x, uint32_t y, uint32_t color)=0
	Sets a pixel at the specified coordinates to the given color.

virtual esp_err_t	send_frame_buffer (const void *frame_buffer)=0
	Sends a frame buffer to the LCD panel.

const size_t	get_width () const
	Gets the width of the LCD panel.

size_t	get_width ()
	Gets the height of the LCD panel.

const size_t	get_height () const
	Gets the height of the LCD panel.

size_t	get_height ()
	Gets the height of the LCD panel.

const lcd_color_rgb_pixel_format_t	get_pixel_format () const
	Get the pixel format object.

lcd_color_rgb_pixel_format_t	get_pixel_format ()
	Get the pixel format object.

const esp_lcd_panel_handle_t	get_handler () const
	Get the handler object.

esp_lcd_panel_handle_t	get_handler ()
	Get the handler object.

const bool	is_initialized () const
	Checks if the LCD driver is initialized.

bool	is_initialized ()
	Checks if the LCD driver is initialized.

Protected Attributes
bool	initialized = false
	Flag indicating if the LCD driver is initialized.

size_t	width
	Width of the LCD panel in pixels.

size_t	height
	Height of the LCD panel in pixels.

lcd_color_rgb_pixel_format_t	pixel_format
	Pixel format of the LCD panel.

esp_lcd_panel_handle_t	handler
	Handle to the LCD panel.

Detailed Description

Base class for LCD drivers.

This class provides an interface for LCD drivers, including methods for initialization, deinitialization, setting pixels, and sending frame buffers. It also provides access to the LCD panel's width, height, pixel format, and handler.

Constructor & Destructor Documentation

◆ DriverLCD()

Ragot::DriverLCD::DriverLCD ( )

default

Default constructor for the DriverLCD class.

Initializes the LCD driver with default values.

◆ ~DriverLCD()

virtual Ragot::DriverLCD::~DriverLCD ( )

virtualdefault

Default virtual destructor for the DriverLCD class.

Cleans up resources used by the LCD driver.

Member Function Documentation

◆ deinit()

virtual esp_err_t Ragot::DriverLCD::deinit ( )

pure virtual

Deinitializes the LCD driver.

This method should be implemented by derived classes to clean up resources used by the LCD panel.

Returns: esp_err_t ESP_OK on success, or an error code on failure.

Implemented in Ragot::Driver_ST7789, and Ragot::DriverEK79007.

◆ get_handler() [1/2]

esp_lcd_panel_handle_t Ragot::DriverLCD::get_handler ( )

inline

Get the handler object.

Returns: esp_lcd_panel_handle_t

◆ get_handler() [2/2]

const esp_lcd_panel_handle_t Ragot::DriverLCD::get_handler ( ) const

inline

Get the handler object.

Returns: const esp_lcd_panel_handle_t

◆ get_height() [1/2]

size_t Ragot::DriverLCD::get_height ( )

inline

Gets the height of the LCD panel.

Returns: size_t Height of the LCD panel in pixels.

◆ get_height() [2/2]

const size_t Ragot::DriverLCD::get_height ( ) const

inline

Gets the height of the LCD panel.

Returns: size_t Height of the LCD panel in pixels.

◆ get_pixel_format() [1/2]

lcd_color_rgb_pixel_format_t Ragot::DriverLCD::get_pixel_format ( )

inline

Get the pixel format object.

Returns: lcd_color_rgb_pixel_format_t

◆ get_pixel_format() [2/2]

const lcd_color_rgb_pixel_format_t Ragot::DriverLCD::get_pixel_format ( ) const

inline

Get the pixel format object.

Returns: const lcd_color_rgb_pixel_format_t

◆ get_width() [1/2]

size_t Ragot::DriverLCD::get_width ( )

inline

Gets the height of the LCD panel.

Returns: size_t Height of the LCD panel in pixels.

◆ get_width() [2/2]

const size_t Ragot::DriverLCD::get_width ( ) const

inline

Gets the width of the LCD panel.

Returns: size_t Width of the LCD panel in pixels.

◆ init()

virtual esp_err_t Ragot::DriverLCD::init	(	gpio_num_t	reset_pin,
		gpio_num_t	bk_pin )

pure virtual

Initializes the LCD driver with the specified reset and backlight GPIO pins.

This method should be implemented by derived classes to set up the LCD panel.

Parameters

reset_pin	GPIO pin for panel reset.
bk_pin	GPIO pin for backlight control.

Returns: esp_err_t ESP_OK on success, or an error code on failure.

Implemented in Ragot::Driver_ST7789, and Ragot::DriverEK79007.

◆ is_initialized() [1/2]

bool Ragot::DriverLCD::is_initialized ( )

inline

Checks if the LCD driver is initialized.

Returns: true; false

◆ is_initialized() [2/2]

const bool Ragot::DriverLCD::is_initialized ( ) const

inline

Checks if the LCD driver is initialized.

Returns: true; false

◆ send_frame_buffer()

virtual esp_err_t Ragot::DriverLCD::send_frame_buffer ( const void * frame_buffer )

pure virtual

Sends a frame buffer to the LCD panel.

This method should be implemented by derived classes to send the provided frame buffer to the panel for display.

Parameters

frame_buffer Pointer to the frame buffer data.

Returns: esp_err_t ESP_OK on success, or an error code on failure.

Implemented in Ragot::Driver_ST7789, and Ragot::DriverEK79007.

◆ set_pixel()

virtual esp_err_t Ragot::DriverLCD::set_pixel	(	uint32_t	x,
		uint32_t	y,
		uint32_t	color )

pure virtual

Sets a pixel at the specified coordinates to the given color.

This method should be implemented by derived classes to set a pixel on the LCD panel.

Parameters

x	X coordinate of the pixel.
y	Y coordinate of the pixel.
color	Color value for the pixel.

Returns: esp_err_t ESP_OK on success, or an error code on failure.

Implemented in Ragot::Driver_ST7789, and Ragot::DriverEK79007.

Member Data Documentation

◆ handler

esp_lcd_panel_handle_t Ragot::DriverLCD::handler

protected

Handle to the LCD panel.

◆ height

size_t Ragot::DriverLCD::height

protected

Height of the LCD panel in pixels.

◆ initialized

bool Ragot::DriverLCD::initialized = false

protected

Flag indicating if the LCD driver is initialized.

◆ pixel_format

lcd_color_rgb_pixel_format_t Ragot::DriverLCD::pixel_format

protected

Pixel format of the LCD panel.

◆ width

size_t Ragot::DriverLCD::width

protected

Width of the LCD panel in pixels.

The documentation for this class was generated from the following file:

main/driver_lcd.hpp
