Ragot::PSRAMAllocator< T, Flag > Class Template Reference

Custom memory allocator for PSRAM. More...

#include <RamAllocator.hpp>

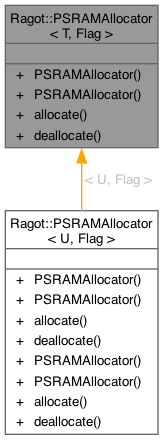

Inheritance diagram for Ragot::PSRAMAllocator< T, Flag >:

Collaboration diagram for Ragot::PSRAMAllocator< T, Flag >:

Classes
struct	rebind
	Rebinds the allocator to a different type. This struct allows the PSRAMAllocator to be used with different types while maintaining the same allocation flags. More...

Public Types
using	value_type = T
using	pointer = T*
using	size_type = std::size_t

Public Member Functions
	PSRAMAllocator () noexcept
	Default constructor for PSRAMAllocator.
template<typename U, uint16_t F2>
	PSRAMAllocator (const PSRAMAllocator< U, F2 > &) noexcept
	Copy constructor for PSRAMAllocator.
T *	allocate (size_type n)
	Allocates memory for n objects of type T in PSRAM.
void	deallocate (T *p, size_type) noexcept
	Deallocates memory for n objects of type T in PSRAM.

Detailed Description

template<typename T, uint16_t Flag>
class Ragot::PSRAMAllocator< T, Flag >

Custom memory allocator for PSRAM.

This class provides a custom memory allocator that uses PSRAM with specific flags. It can be used with standard containers like std::vector to manage memory in embedded systems.

Member Typedef Documentation

pointer

template<typename T, uint16_t Flag>

using Ragot::PSRAMAllocator< T, Flag >::pointer = T*

size_type

template<typename T, uint16_t Flag>

using Ragot::PSRAMAllocator< T, Flag >::size_type = std::size_t

value_type

template<typename T, uint16_t Flag>

using Ragot::PSRAMAllocator< T, Flag >::value_type = T

Constructor & Destructor Documentation

PSRAMAllocator() [1/2]

template<typename T, uint16_t Flag>

Ragot::PSRAMAllocator< T, Flag >::PSRAMAllocator ( )

inlinenoexcept

Default constructor for PSRAMAllocator.

This constructor initializes the PSRAMAllocator without any specific parameters.

PSRAMAllocator() [2/2]

template<typename T, uint16_t Flag>

template<typename U, uint16_t F2>

Ragot::PSRAMAllocator< T, Flag >::PSRAMAllocator ( const PSRAMAllocator< U, F2 > & )

inlinenoexcept

Copy constructor for PSRAMAllocator.

This constructor allows copying of the PSRAMAllocator, but it does not perform any specific actions. It is designed to be used with standard containers that require copyable allocators.

Template Parameters

U	The type to rebind to.

Parameters

other

The allocator to copy from.

Member Function Documentation

allocate()

template<typename T, uint16_t Flag>

T * Ragot::PSRAMAllocator< T, Flag >::allocate ( size_type n )

inline

Allocates memory for n objects of type T in PSRAM.

This method allocates memory for n objects of type T using heap_caps_malloc with the specified flags. If the allocation fails, it throws std::bad_alloc.

Parameters

n	The number of objects to allocate memory for.

Returns

T* Pointer to the allocated memory.

deallocate()

template<typename T, uint16_t Flag>

void Ragot::PSRAMAllocator< T, Flag >::deallocate ( T * p, size_type  )

inlinenoexcept

Deallocates memory for n objects of type T in PSRAM.

This method deallocates memory for n objects of type T using heap_caps_free. It does not throw any exceptions.

Parameters

p	Pointer to the memory to deallocate.
n	The number of objects to deallocate (not used).

---

The documentation for this class was generated from the following file:

• main/RamAllocator.hpp
