Ragot::Component Class Reference

Base class for components in the Ragot engine. More...

#include <Components.hpp>

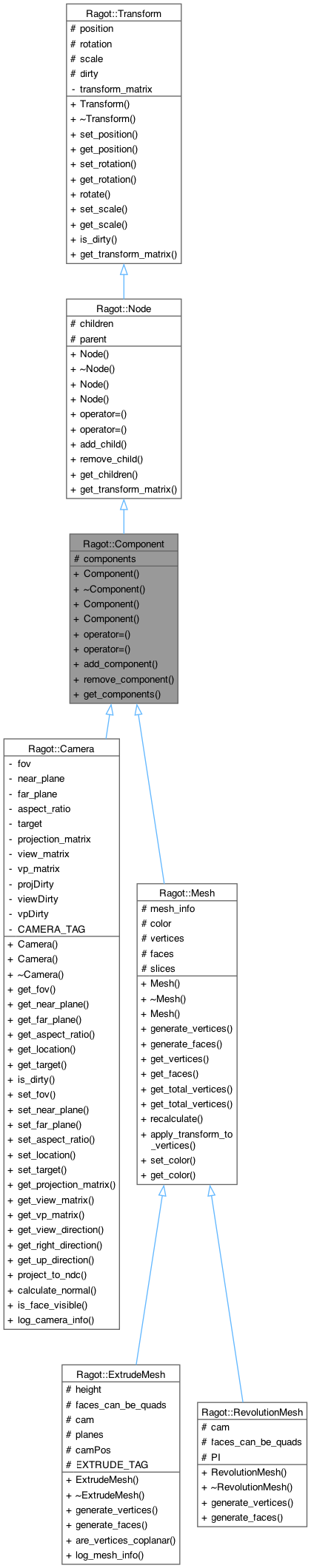

Inheritance diagram for Ragot::Component:

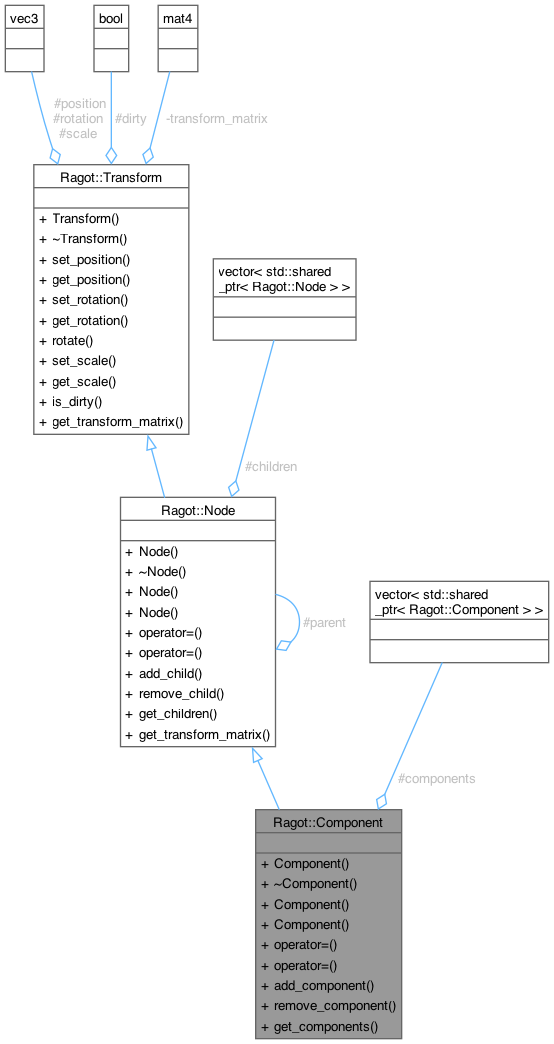

Collaboration diagram for Ragot::Component:

Public Member Functions
	Component ()=default
	Default constructor for the Component class.
virtual	~Component ()=default
	Default virtual destructor for the Component class.
	Component (const Component &)=delete
	Deleted copy constructor for the Component class.
	Component (const Component &&)=delete
	Deleted move constructor for the Component class.
Component &	operator= (const Component &)=delete
	Deleted assignment operator for the Component class.
Component &	operator= (const Component &&)=delete
	Deleted move assignment operator for the Component class.
void	add_component (std::shared_ptr< Component > component)
	Adds a component to the collection.
void	remove_component (std::shared_ptr< Component > component)
	Removes a component from the collection.
const std::vector< std::shared_ptr< Component > >	get_components () const
	Gets the collection of components.
Public Member Functions inherited from Ragot::Node
	Node ()=default
	Default constructor for Node. Initializes an empty node with no parent and no children.
virtual	~Node ()=default
	Default destructor for Node. Cleans up the node and its children.
	Node (const Node &)=delete
	Deleted copy constructor for Node. Prevents copying of Node instances.
	Node (const Node &&)=delete
	Deleted move constructor for Node. Prevents moving of Node instances.
Node &	operator= (const Node &)=delete
	Deleted assignment operator for Node. Prevents assignment of Node instances.
Node &	operator= (const Node &&)=delete
	Deleted move assignment operator for Node. Prevents moving of Node instances.
void	add_child (std::shared_ptr< Node > child)
	Get the parent node.
void	remove_child (std::shared_ptr< Node > child)
	Remove a child node.
const std::vector< std::shared_ptr< Node > > &	get_children () const
	Get the parent node.
mat4	get_transform_matrix () override
	Get the transform matrix object.
Public Member Functions inherited from Ragot::Transform
	Transform ()
	Default constructor for the Transform class.
virtual	~Transform ()=default
	Virtual destructor for the Transform class.
void	set_position (const vec3 &pos)
	Sets the position of the object.
vec3	get_position () const
	Gets the current position of the object.
void	set_rotation (const vec3 &rot)
	Moves the object by a specified vector.
vec3	get_rotation () const
	Gets the current rotation of the object.
void	rotate (const float angle, const vec3 &axis)
	Rotates the object by a specified angle around a given axis.
void	set_scale (const vec3 &scale)
	Sets the scale of the object.
vec3	get_scale () const
	Sets the scale of the object uniformly.
bool	is_dirty () const
	Checks if the transformation matrix is dirty (needs recalculation).

Protected Attributes
std::vector< std::shared_ptr< Component > >	components
	Collection of components managed by this Component instance.
Protected Attributes inherited from Ragot::Node
std::vector< std::shared_ptr< Node > >	children
	List of child nodes.
Node *	parent = nullptr
	Pointer to the parent node.
Protected Attributes inherited from Ragot::Transform
vec3	position
	The position of the object in 3D space.
vec3	rotation
	The rotation of the object in degrees around each axis (x, y, z).
vec3	scale
	The scale of the object in 3D space, default is (1, 1, 1).
bool	dirty = true
	Flag indicating whether the transformation matrix needs to be recalculated.

Detailed Description

Base class for components in the Ragot engine.

The Component class serves as a base class for all components in the Ragot engine. It allows for the management of a collection of components, providing methods to add and remove components, and access the list of components.

Constructor & Destructor Documentation

Component() [1/3]

Ragot::Component::Component ( )

default

Default constructor for the Component class.

Initializes an empty component with no parent.

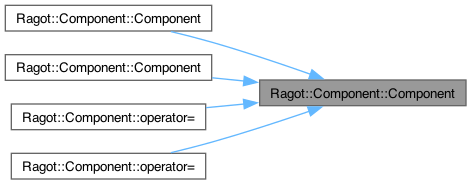

Here is the caller graph for this function:

~Component()

virtual Ragot::Component::~Component ( )

virtualdefault

Default virtual destructor for the Component class.

Cleans up the component and its resources.

Component() [2/3]

Ragot::Component::Component ( const Component & )

delete

Deleted copy constructor for the Component class.

Here is the call graph for this function:

Component() [3/3]

Ragot::Component::Component ( const Component && )

delete

Deleted move constructor for the Component class.

Prevents moving a Component instance.

Here is the call graph for this function:

Member Function Documentation

add_component()

void Ragot::Component::add_component ( std::shared_ptr< Component > component )

inline

Adds a component to the collection.

This method adds a shared pointer to a component to the collection and sets its parent to this Component instance.

Parameters

component

Shared pointer to the component to be added.

get_components()

const std::vector< std::shared_ptr< Component > > Ragot::Component::get_components ( ) const

inline

Gets the collection of components.

This method returns a constant reference to the vector of components managed by this Component instance.

Returns

const std::vector<std::shared_ptr<Component>>& Reference to the vector of components.

operator=() [1/2]

Component & Ragot::Component::operator= ( const Component && )

delete

Deleted move assignment operator for the Component class.

Prevents moving a Component instance.

Here is the call graph for this function:

operator=() [2/2]

Component & Ragot::Component::operator= ( const Component & )

delete

Deleted assignment operator for the Component class.

Prevents assignment of a Component instance.

Here is the call graph for this function:

remove_component()

void Ragot::Component::remove_component ( std::shared_ptr< Component > component )

inline

Removes a component from the collection.

This method removes a shared pointer to a component from the collection and sets its parent to nullptr.

Parameters

component

Shared pointer to the component to be removed.

Member Data Documentation

components

std::vector< std::shared_ptr < Component > > Ragot::Component::components

protected

Collection of components managed by this Component instance.

This vector holds shared pointers to the components that are part of this Component instance.

---

The documentation for this class was generated from the following file:

• main/Components.hpp
