Class for rasterizing polygons in a frame buffer. More...

#include <Rasterizer.hpp>

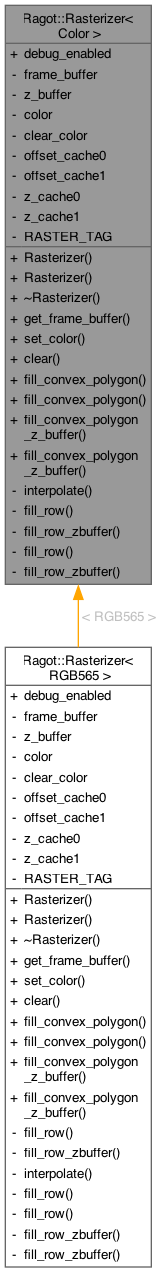

Inheritance diagram for Ragot::Rasterizer< Color >:

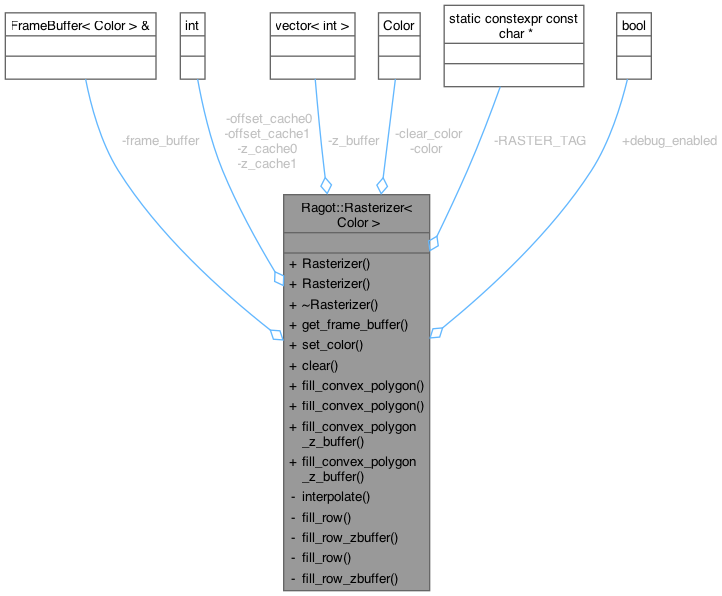

Collaboration diagram for Ragot::Rasterizer< Color >:

Public Member Functions
	Rasterizer (FrameBuffer< Color > &frame)
	Constructs a Rasterizer with a given frame buffer.

	Rasterizer ()=default
	Default constructor for the Rasterizer class (Default).

	~Rasterizer ()=default
	Default destructor for the Rasterizer class.

const FrameBuffer< Color > &	get_frame_buffer () const
	Gets the frame buffer associated with this rasterizer.

void	set_color (const Color &new_color)
	Gets the current color used for drawing polygons.

void	clear ()
	Gets the current color used for clearing the frame buffer.

void	fill_convex_polygon (const glm::ivec4 const vertices, const int const indices_begin, const int *const indices_end)
	Fills a convex polygon defined by its vertices and indices.

void	fill_convex_polygon (const glm::ivec4 const vertices, const face_t const face)
	Fills a convex polygon defined by its vertices and face structure.

void	fill_convex_polygon_z_buffer (const glm::ivec4 const vertices, const face_t const face)
	Fills a convex polygon in the Z-buffer.

void	fill_convex_polygon_z_buffer (const glm::ivec4 const vertices, const int const indices_begin, const int *const indices_end)
	Fills a convex polygon in the Z-buffer using vertex indices.

Public Attributes
bool	debug_enabled = true

Private Member Functions
template<typename VALUE_TYPE, size_t SHIFT>
void	interpolate (int *cache, int v0, int v1, int y_min, int y_max)
	< Enable or disable debug logging for rasterization operations.

template<unsigned COLOR_SIZE>
void	fill_row (Color *start, unsigned left_offset, unsigned right_offset, const Color &color)
	Fills a row of pixels in the frame buffer with a specified color.

template<unsigned COLOR_SIZE>
void	fill_row_zbuffer (Color start, int zbuffer, unsigned left_offset, unsigned right_offset, int z_start, int dz, const Color &color)
	Fills a row of pixels in the frame buffer with a specified color using Z-buffering.

void	fill_row (RGB565 *start, unsigned left_offset, unsigned right_offset, const RGB565 &color)

void	fill_row_zbuffer (RGB565 start, int zbuffer, unsigned left_offset, unsigned right_offset, int z_start, int dz, const RGB565 &color)

Private Attributes
FrameBuffer< Color > &	frame_buffer
	Reference to the frame buffer where polygons will be drawn.

std::vector< int >	z_buffer
	Z-buffer for depth testing, used when painter's algorithm is disabled.

Color	color
	Current color to be used for drawing polygons.

Color	clear_color
	Color used to clear the frame buffer, default is black.

Static Private Attributes
static int	offset_cache0 [1024]
	Cache for left offsets of scanlines >

static int	offset_cache1 [1024]
	Cache for right offsets of scanlines.

static int	z_cache0 [1024]
	Cache for Z-buffer values for left offsets.

static int	z_cache1 [1024]
	Cache for Z-buffer values for right offsets.

static constexpr const char *	RASTER_TAG = "Rasterizer"

Detailed Description

template<typename Color>
class Ragot::Rasterizer< Color >

Class for rasterizing polygons in a frame buffer.

This class provides methods to fill convex polygons in a frame buffer with a specified color. It supports both standard rasterization and Z-buffering techniques.

Template Parameters

Color The color type used for the frame buffer (e.g., RGB565).

Constructor & Destructor Documentation

◆ Rasterizer() [1/2]

template<typename Color>

Ragot::Rasterizer< Color >::Rasterizer ( FrameBuffer< Color > & frame )

inline

Constructs a Rasterizer with a given frame buffer.

Initializes the rasterizer with the specified frame buffer and prepares the Z-buffer if needed.

Parameters

frame Reference to the frame buffer where polygons will be drawn.

◆ Rasterizer() [2/2]

template<typename Color>

Ragot::Rasterizer< Color >::Rasterizer ( )

default

Default constructor for the Rasterizer class (Default).

◆ ~Rasterizer()

template<typename Color>

Ragot::Rasterizer< Color >::~Rasterizer ( )

default

Default destructor for the Rasterizer class.

Cleans up resources used by the rasterizer.

Member Function Documentation

◆ clear()

template<typename Color>

void Ragot::Rasterizer< Color >::clear ( )

inline

Gets the current color used for clearing the frame buffer.

This method returns the color that will be used to clear the frame buffer.

Returns: const Color& Reference to the clear color.

◆ fill_convex_polygon() [1/2]

template<typename COLOR>

void Ragot::Rasterizer< COLOR >::fill_convex_polygon	(	const glm::ivec4 *const	vertices,
		const face_t *const	face )

Fills a convex polygon defined by its vertices and face structure.

This method fills a convex polygon in the frame buffer using the specified vertices and face structure.

Parameters

vertices	Pointer to an array of vertices defining the polygon.
face	Pointer to the face structure containing vertex indices.

◆ fill_convex_polygon() [2/2]

template<typename COLOR>

void Ragot::Rasterizer< COLOR >::fill_convex_polygon	(	const glm::ivec4 *const	vertices,
		const int *const	indices_begin,
		const int *const	indices_end )

Fills a convex polygon defined by its vertices and indices.

This method fills a convex polygon in the frame buffer using the specified vertices and indices.

Parameters

vertices	Pointer to an array of vertices defining the polygon.
indices_begin	Pointer to the beginning of the indices array.
indices_end	Pointer to the end of the indices array.

Here is the call graph for this function:

◆ fill_convex_polygon_z_buffer() [1/2]

template<typename COLOR>

template void Ragot::Rasterizer< Color >::fill_convex_polygon_z_buffer	(	const glm::ivec4 *const	vertices,
		const face_t *const	face )

Fills a convex polygon in the Z-buffer.

This method fills a convex polygon in the Z-buffer using the specified vertices and face structure. It performs depth testing to ensure correct rendering order.

Parameters

vertices	Pointer to an array of vertices defining the polygon.
face	Pointer to the face structure containing vertex indices.

◆ fill_convex_polygon_z_buffer() [2/2]

template<typename COLOR>

template void Ragot::Rasterizer< Color >::fill_convex_polygon_z_buffer	(	const glm::ivec4 *const	vertices,
		const int *const	indices_begin,
		const int *const	indices_end )

Fills a convex polygon in the Z-buffer using vertex indices.

This method fills a convex polygon in the Z-buffer using the specified vertices and indices. It performs depth testing to ensure correct rendering order.
Parameters

vertices Pointer to an array of vertices defining the polygon.

indices_begin Pointer to the beginning of the indices array.

indices_end Pointer to the end of the indices array.

Here is the call graph for this function:

◆ fill_row() [1/2]

template<typename Color>

template<unsigned COLOR_SIZE>

void Ragot::Rasterizer< Color >::fill_row	(	Color *	start,
		unsigned	left_offset,
		unsigned	right_offset,
		const Color &	color )

inlineprivate

Fills a row of pixels in the frame buffer with a specified color.

This method fills a row of pixels in the frame buffer with the specified color, from left_offset to right_offset.

Template Parameters

COLOR_SIZE The size of the color type in bytes.

Parameters

start	Pointer to the first pixel of the scanline.
left_offset	The starting offset (inclusive).
right_offset	The ending offset (exclusive).
color	The color to fill the row with.

◆ fill_row() [2/2]

void Ragot::Rasterizer< RGB565 >::fill_row< 2 >	(	RGB565 *	start,
		unsigned	left_offset,
		unsigned	right_offset,
		const RGB565 &	color )

private

◆ fill_row_zbuffer() [1/2]

template<typename Color>

template<unsigned COLOR_SIZE>

void Ragot::Rasterizer< Color >::fill_row_zbuffer	(	Color *	start,
		int *	zbuffer,
		unsigned	left_offset,
		unsigned	right_offset,
		int	z_start,
		int	dz,
		const Color &	color )

inlineprivate

Fills a row of pixels in the frame buffer with a specified color using Z-buffering.

This method fills a row of pixels in the frame buffer with the specified color, from left_offset to right_offset, while performing depth testing using the Z-buffer.

Template Parameters

COLOR_SIZE The size of the color type in bytes.

Parameters

start	Pointer to the first pixel of the scanline.
zbuffer	Pointer to the first element of the Z-buffer.
left_offset	The starting offset (inclusive).
right_offset	The ending offset (exclusive).
z_start	The initial depth value at left_offset.
dz	The increment of depth per pixel.
color	The color to fill the row with.

◆ fill_row_zbuffer() [2/2]

void Ragot::Rasterizer< RGB565 >::fill_row_zbuffer< 2 >	(	RGB565 *	start,
		int *	zbuffer,
		unsigned	left_offset,
		unsigned	right_offset,
		int	z_start,
		int	dz,
		const RGB565 &	color )

private

◆ get_frame_buffer()

template<typename Color>

const FrameBuffer< Color > & Ragot::Rasterizer< Color >::get_frame_buffer ( ) const

inline

Gets the frame buffer associated with this rasterizer.

This method returns a reference to the frame buffer where polygons will be drawn.

Returns: const FrameBuffer<Color>& Reference to the frame buffer.

◆ interpolate()

template<typename COLOR>

template<typename VALUE_TYPE, size_t SHIFT>

void Ragot::Rasterizer< COLOR >::interpolate	(	int *	cache,
		int	v0,
		int	v1,
		int	y_min,
		int	y_max )

private

< Enable or disable debug logging for rasterization operations.

Interpolates pixel offsets for a scanline.

This method interpolates pixel offsets for a scanline based on the provided vertex values and Y range. It fills the offset cache with calculated pixel offsets.

Template Parameters

VALUE_TYPE	The type of value used for interpolation (e.g., int32_t).
SHIFT	The bit shift value used for scaling the interpolation.

Parameters

cache	Pointer to the cache where interpolated offsets will be stored.
v0	The starting vertex value.
v1	The ending vertex value.
y_min	The minimum Y coordinate of the scanline.
y_max	The maximum Y coordinate of the scanline.

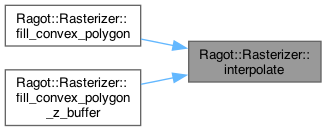

Here is the caller graph for this function:

◆ set_color()

template<typename Color>

void Ragot::Rasterizer< Color >::set_color ( const Color & new_color )

inline

Gets the current color used for drawing polygons.

This method returns the current color that will be used to fill polygons.

Returns: const Color& Reference to the current color.

Member Data Documentation

◆ clear_color

template<typename Color>

Color Ragot::Rasterizer< Color >::clear_color

private

Color used to clear the frame buffer, default is black.

◆ color

template<typename Color>

Color Ragot::Rasterizer< Color >::color

private

Current color to be used for drawing polygons.

◆ debug_enabled

template<typename Color>

bool Ragot::Rasterizer< Color >::debug_enabled = true

◆ frame_buffer

template<typename Color>

FrameBuffer< Color >& Ragot::Rasterizer< Color >::frame_buffer

private

Reference to the frame buffer where polygons will be drawn.

◆ offset_cache0

template<typename Color>

int Ragot::Rasterizer< Color >::offset_cache0[1024]

staticprivate

Cache for left offsets of scanlines >

◆ offset_cache1

template<typename Color>

int Ragot::Rasterizer< Color >::offset_cache1[1024]

staticprivate

Cache for right offsets of scanlines.

◆ RASTER_TAG

template<typename Color>

const char* Ragot::Rasterizer< Color >::RASTER_TAG = "Rasterizer"

staticconstexprprivate

◆ z_buffer

template<typename Color>

std::vector< int > Ragot::Rasterizer< Color >::z_buffer

private

Z-buffer for depth testing, used when painter's algorithm is disabled.

◆ z_cache0

template<typename Color>

int Ragot::Rasterizer< Color >::z_cache0[1024]

staticprivate

Cache for Z-buffer values for left offsets.

◆ z_cache1

template<typename Color>

int Ragot::Rasterizer< Color >::z_cache1[1024]

staticprivate

Cache for Z-buffer values for right offsets.

The documentation for this class was generated from the following files:

main/Rasterizer.hpp
main/Rasterizer.cpp

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Rasterizer() [1/2]

◆ Rasterizer() [2/2]

◆ ~Rasterizer()

Member Function Documentation

◆ clear()

◆ fill_convex_polygon() [1/2]

◆ fill_convex_polygon() [2/2]

◆ fill_convex_polygon_z_buffer() [1/2]

◆ fill_convex_polygon_z_buffer() [2/2]

◆ fill_row() [1/2]

◆ fill_row() [2/2]

◆ fill_row_zbuffer() [1/2]

◆ fill_row_zbuffer() [2/2]

◆ get_frame_buffer()

◆ interpolate()

◆ set_color()

Member Data Documentation

◆ clear_color

◆ color

◆ debug_enabled

◆ frame_buffer

◆ offset_cache0

◆ offset_cache1

◆ RASTER_TAG

◆ z_buffer

◆ z_cache0

◆ z_cache1
