Represents a 3D mesh created by extruding a 2D shape along a specified height. This class inherits from the Mesh class and provides methods to generate vertices and faces for the extruded mesh. It also includes methods for culling faces based on the camera's view direction and logging mesh information. More...

#include <ExtrudeMesh.hpp>

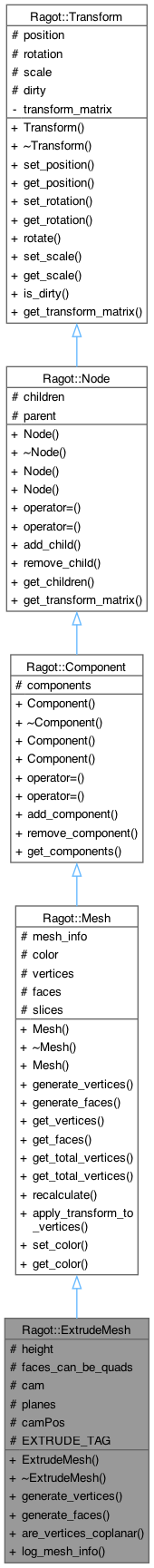

Inheritance diagram for Ragot::ExtrudeMesh:

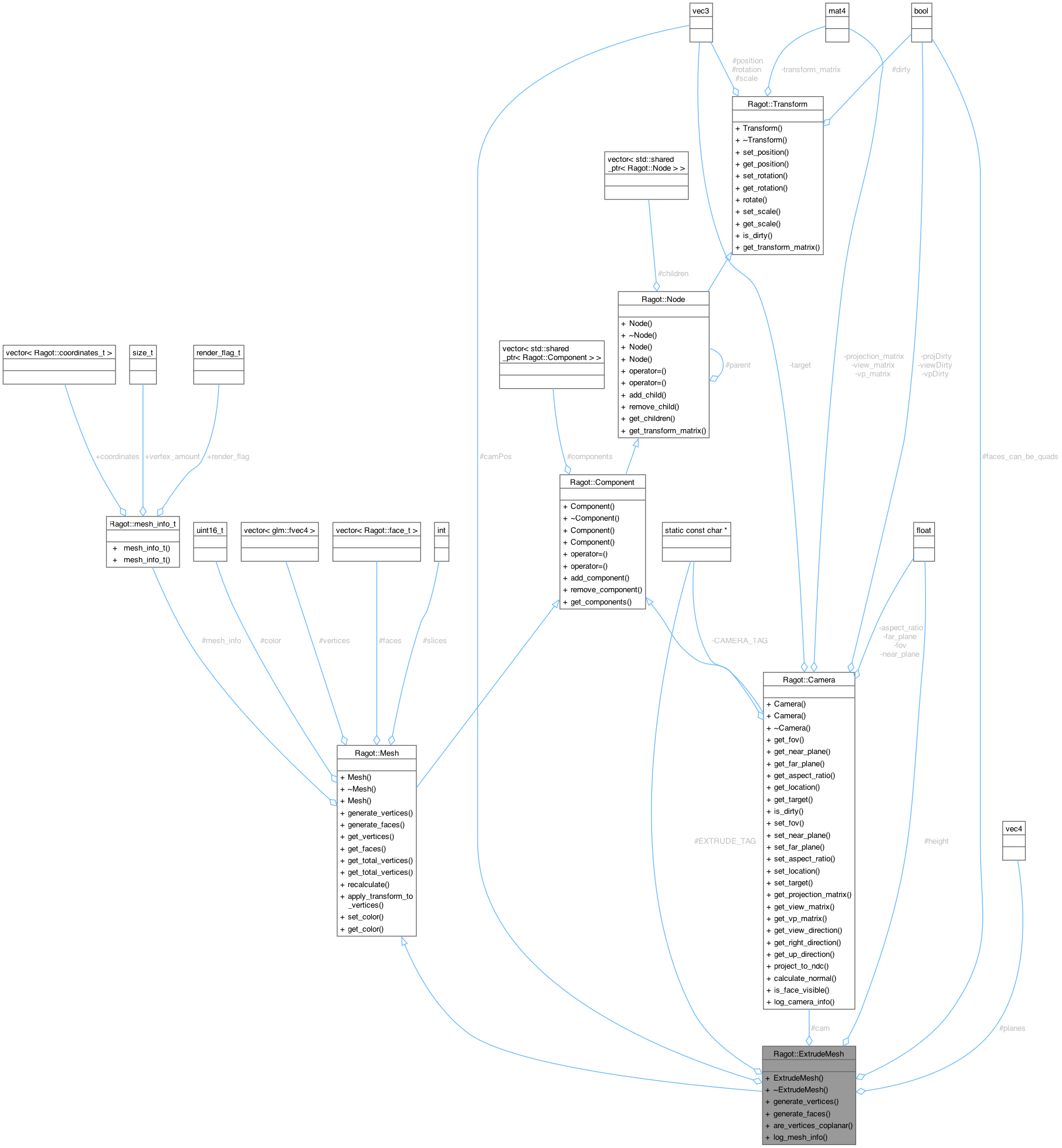

Collaboration diagram for Ragot::ExtrudeMesh:

Public Member Functions
	ExtrudeMesh (mesh_info_t &mesh_info, const Camera &cam)
	Constructs an ExtrudeMesh object with the specified mesh information and camera reference.

	~ExtrudeMesh ()=default
	Default destructor for the ExtrudeMesh class.

void	generate_vertices () override
	Deleted copy constructor for the ExtrudeMesh class.

void	generate_faces () override
	Generates the faces of the extruded mesh.

bool	are_vertices_coplanar (const glm::fvec4 &v1, const glm::fvec4 &v2, const glm::fvec4 &v3, const glm::fvec4 &v4, float tolerance=0.1f)
	Verifies if four vertices are coplanar.

void	log_mesh_info () const
	Logs detailed information about the mesh.

Public Member Functions inherited from Ragot::Mesh
	Mesh ()=delete
	Construct a new Mesh object (deleted constructor).

virtual	~Mesh ()=default
	Default virtual destructor for the Mesh class.

	Mesh (mesh_info_t &mesh_info)
	Construct a new Mesh object with mesh information.

const std::vector< glm::fvec4 > &	get_vertices () const
	Get the vertices object.

const std::vector< face_t > &	get_faces () const
	Get the faces object.

const size_t	get_total_vertices () const
	Get the total vertices object.

size_t	get_total_vertices ()
	Get the total vertices object.

void	recalculate ()
	Recalculate the mesh vertices and faces.

void	apply_transform_to_vertices ()
	Apply the current transformation to the vertices of the mesh. This method applies the transformation matrix obtained from the Transform class to each vertex in the mesh. This is useful for updating the mesh vertices after any transformation has been applied, such as translation, rotation, or scaling. It modifies the vertices in place, transforming them according to the current transformation matrix.

void	set_color (uint16_t new_color)
	Set the color of the mesh.

uint16_t	get_color () const
	Get the color of the mesh.

Public Member Functions inherited from Ragot::Component
	Component ()=default
	Default constructor for the Component class.

virtual	~Component ()=default
	Default virtual destructor for the Component class.

	Component (const Component &)=delete
	Deleted copy constructor for the Component class.

	Component (const Component &&)=delete
	Deleted move constructor for the Component class.

Component &	operator= (const Component &)=delete
	Deleted assignment operator for the Component class.

Component &	operator= (const Component &&)=delete
	Deleted move assignment operator for the Component class.

void	add_component (std::shared_ptr< Component > component)
	Adds a component to the collection.

void	remove_component (std::shared_ptr< Component > component)
	Removes a component from the collection.

const std::vector< std::shared_ptr< Component > >	get_components () const
	Gets the collection of components.

Public Member Functions inherited from Ragot::Node
	Node ()=default
	Default constructor for Node. Initializes an empty node with no parent and no children.

virtual	~Node ()=default
	Default destructor for Node. Cleans up the node and its children.

	Node (const Node &)=delete
	Deleted copy constructor for Node. Prevents copying of Node instances.

	Node (const Node &&)=delete
	Deleted move constructor for Node. Prevents moving of Node instances.

Node &	operator= (const Node &)=delete
	Deleted assignment operator for Node. Prevents assignment of Node instances.

Node &	operator= (const Node &&)=delete
	Deleted move assignment operator for Node. Prevents moving of Node instances.

void	add_child (std::shared_ptr< Node > child)
	Get the parent node.

void	remove_child (std::shared_ptr< Node > child)
	Remove a child node.

const std::vector< std::shared_ptr< Node > > &	get_children () const
	Get the parent node.

mat4	get_transform_matrix () override
	Get the transform matrix object.

Public Member Functions inherited from Ragot::Transform
	Transform ()
	Default constructor for the Transform class.

virtual	~Transform ()=default
	Virtual destructor for the Transform class.

void	set_position (const vec3 &pos)
	Sets the position of the object.

vec3	get_position () const
	Gets the current position of the object.

void	set_rotation (const vec3 &rot)
	Moves the object by a specified vector.

vec3	get_rotation () const
	Gets the current rotation of the object.

void	rotate (const float angle, const vec3 &axis)
	Rotates the object by a specified angle around a given axis.

void	set_scale (const vec3 &scale)
	Sets the scale of the object.

vec3	get_scale () const
	Sets the scale of the object uniformly.

bool	is_dirty () const
	Checks if the transformation matrix is dirty (needs recalculation).

Protected Attributes
float	height = 1.0f
	Height of the extrusion.

bool	faces_can_be_quads = false
	Flag indicating whether the faces can be quads.

const Camera &	cam
	Camera reference for culling faces based on the camera's view direction.

glm::vec4	planes [4]
	Array of planes used for culling faces.

glm::vec3	camPos
	Position of the camera in world space.

Protected Attributes inherited from Ragot::Mesh
mesh_info_t	mesh_info
	Information about the mesh, including coordinates and rendering type.

uint16_t	color = 0xFFFF
	Color of the mesh, default is white (0xFFFF).

std::vector< glm::fvec4 >	vertices
	Vector of vertices representing the mesh in 3D space.

std::vector< face_t >	faces
	Vector of faces representing the mesh, each face can be a triangle or a quad.

int	slices = 16
	Number of slices for generating the mesh, default is 16.

Protected Attributes inherited from Ragot::Component
std::vector< std::shared_ptr< Component > >	components
	Collection of components managed by this Component instance.

Protected Attributes inherited from Ragot::Node
std::vector< std::shared_ptr< Node > >	children
	List of child nodes.

Node *	parent = nullptr
	Pointer to the parent node.

Protected Attributes inherited from Ragot::Transform
vec3	position
	The position of the object in 3D space.

vec3	rotation
	The rotation of the object in degrees around each axis (x, y, z).

vec3	scale
	The scale of the object in 3D space, default is (1, 1, 1).

bool	dirty = true
	Flag indicating whether the transformation matrix needs to be recalculated.

Static Protected Attributes
static const char *	EXTRUDE_TAG = "ExtrudeMesh"
	Tag for logging messages related to the ExtrudeMesh class.

Detailed Description

Represents a 3D mesh created by extruding a 2D shape along a specified height. This class inherits from the Mesh class and provides methods to generate vertices and faces for the extruded mesh. It also includes methods for culling faces based on the camera's view direction and logging mesh information.

The ExtrudeMesh class is designed to create a 3D mesh by extruding a 2D shape along a specified height. It uses the GLM library for vector and matrix operations, and includes functionality for face culling based on the camera's view direction. The class also provides a method to log detailed information about the mesh, including its position, rotation, scale, and vertex data.

Constructor & Destructor Documentation

◆ ExtrudeMesh()

Ragot::ExtrudeMesh::ExtrudeMesh	(	mesh_info_t &	mesh_info,
		const Camera &	cam )

inline

Constructs an ExtrudeMesh object with the specified mesh information and camera reference.

Parameters

mesh_info	Information about the mesh to be extruded.
cam	Reference to the camera used for culling faces.

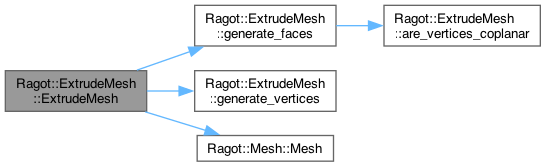

Here is the call graph for this function:

◆ ~ExtrudeMesh()

Ragot::ExtrudeMesh::~ExtrudeMesh ( )

default

Default destructor for the ExtrudeMesh class.

This destructor is used to clean up resources when the ExtrudeMesh object is destroyed.

Member Function Documentation

◆ are_vertices_coplanar()

bool Ragot::ExtrudeMesh::are_vertices_coplanar	(	const glm::fvec4 &	v1,
		const glm::fvec4 &	v2,
		const glm::fvec4 &	v3,
		const glm::fvec4 &	v4,
		float	tolerance = 0.1f )

Verifies if four vertices are coplanar.

This method checks if the four vertices v1, v2, v3, and v4 are coplanar within a specified tolerance. It uses the scalar triple product to determine coplanarity.

Parameters

v1	First vertex in homogeneous coordinates.
v2	Second vertex in homogeneous coordinates.
v3	Third vertex in homogeneous coordinates.
v4	Fourth vertex in homogeneous coordinates.
tolerance	Tolerance value for coplanarity check (default is 0.1).

Returns: true if the vertices are coplanar, false otherwise.

The method calculates the scalar triple product of the vectors formed by the vertices and checks if it is close to zero within the specified tolerance. The scalar triple product is computed as the dot product of the first vector with the cross product of the other two vectors. This method is useful for determining if a set of vertices can form a valid face in the mesh.

Note: This method assumes that the vertices are provided in homogeneous coordinates (4D vectors).

Here is the caller graph for this function:

◆ generate_faces()

void Ragot::ExtrudeMesh::generate_faces ( )

overridevirtual

Generates the faces of the extruded mesh.

This method creates the faces of the mesh based on the vertices generated by the generate_vertices method. It checks if the vertices are coplanar and creates either quads or triangles accordingly.

Implements Ragot::Mesh.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ generate_vertices()

void Ragot::ExtrudeMesh::generate_vertices ( )

overridevirtual

Deleted copy constructor for the ExtrudeMesh class.

This constructor is deleted to prevent copying of ExtrudeMesh objects.

Implements Ragot::Mesh.

Here is the caller graph for this function:

◆ log_mesh_info()

void Ragot::ExtrudeMesh::log_mesh_info ( ) const

Logs detailed information about the mesh.

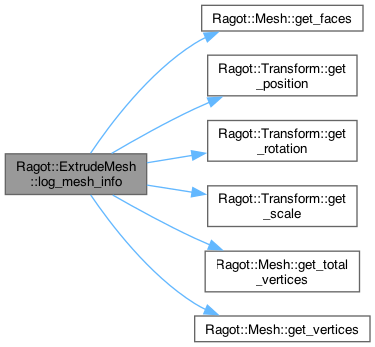

Here is the call graph for this function:

Member Data Documentation

◆ cam

const Camera& Ragot::ExtrudeMesh::cam

protected

Camera reference for culling faces based on the camera's view direction.

This reference is used to determine which faces of the mesh are visible from the camera's perspective.

◆ camPos

glm::vec3 Ragot::ExtrudeMesh::camPos

protected

Position of the camera in world space.

This vector represents the position of the camera in the 3D world. It is used to calculate the visibility of faces based on the camera's position.

◆ EXTRUDE_TAG

const char * Ragot::ExtrudeMesh::EXTRUDE_TAG = "ExtrudeMesh"

staticprotected

Tag for logging messages related to the ExtrudeMesh class.

◆ faces_can_be_quads

bool Ragot::ExtrudeMesh::faces_can_be_quads = false

protected

Flag indicating whether the faces can be quads.

This flag is set to true if the number of vertices is a multiple of 8 or if it is exactly 4. It determines how faces are generated in the mesh.

◆ height

float Ragot::ExtrudeMesh::height = 1.0f

protected

Height of the extrusion.

This value determines how far the 2D shape is extruded in the Z direction.

◆ planes

glm::vec4 Ragot::ExtrudeMesh::planes[4]

protected

Array of planes used for culling faces.

This array contains the planes that define the view frustum of the camera. It is used to determine which faces are visible and which can be culled.

The documentation for this class was generated from the following files:

main/ExtrudeMesh.hpp
main/ExtrudeMesh.cpp
