Ragot::Mesh Class Reference

Represents a 3D mesh in the Ragot engine. More...

#include <Mesh.hpp>

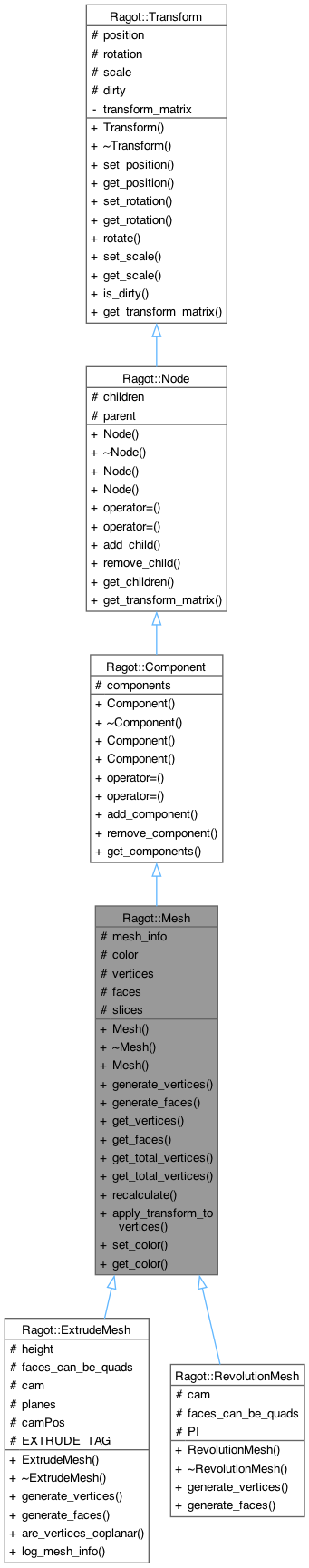

Inheritance diagram for Ragot::Mesh:

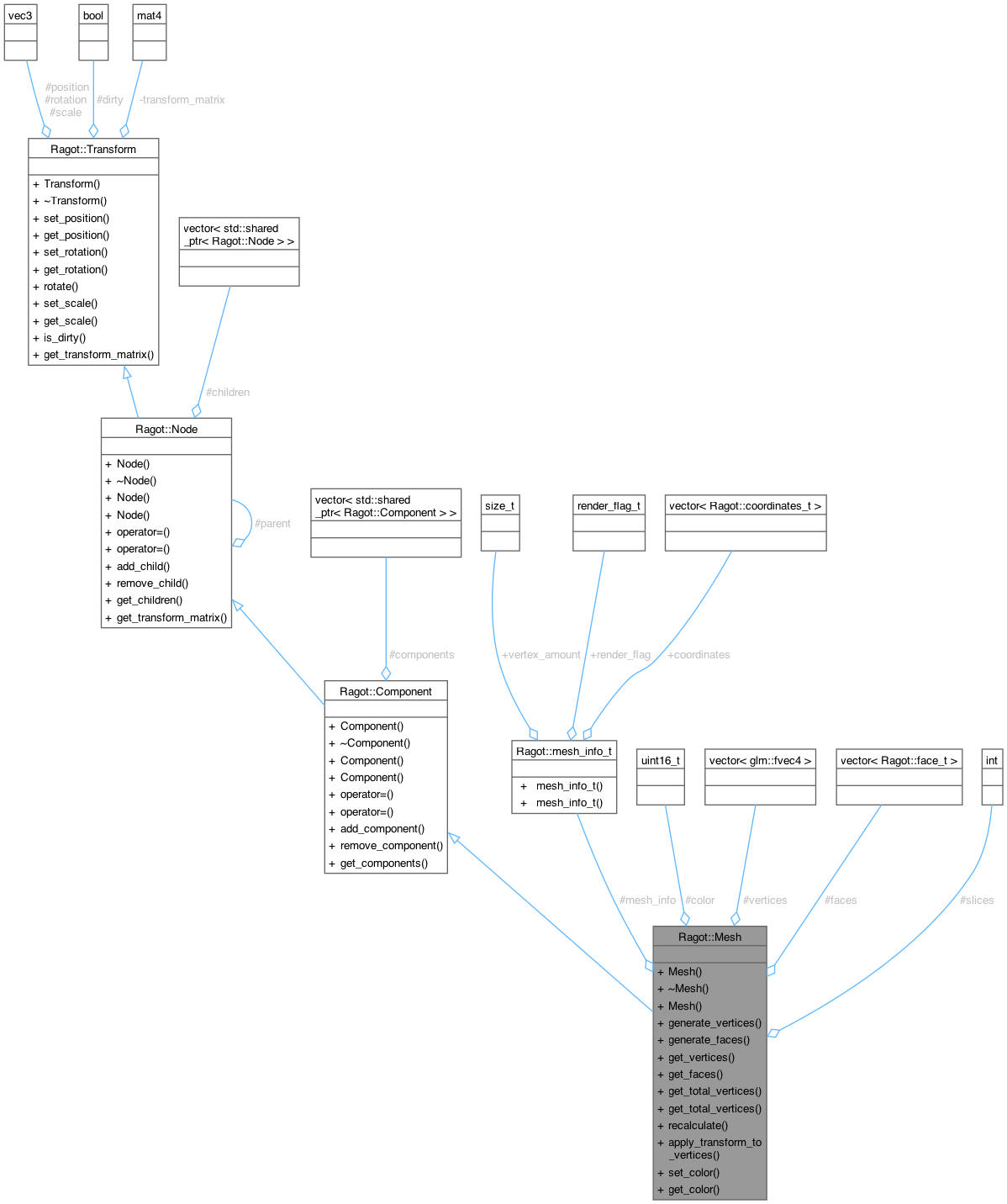

Collaboration diagram for Ragot::Mesh:

Public Member Functions
	Mesh ()=delete
	Construct a new Mesh object (deleted constructor).
virtual	~Mesh ()=default
	Default virtual destructor for the Mesh class.
	Mesh (mesh_info_t &mesh_info)
	Construct a new Mesh object with mesh information.
virtual void	generate_vertices ()=0
	Generate vertices for the mesh.
virtual void	generate_faces ()=0
	Generate faces for the mesh.
const std::vector< glm::fvec4 > &	get_vertices () const
	Get the vertices object.
const std::vector< face_t > &	get_faces () const
	Get the faces object.
const size_t	get_total_vertices () const
	Get the total vertices object.
size_t	get_total_vertices ()
	Get the total vertices object.
void	recalculate ()
	Recalculate the mesh vertices and faces.
void	apply_transform_to_vertices ()
	Apply the current transformation to the vertices of the mesh. This method applies the transformation matrix obtained from the Transform class to each vertex in the mesh. This is useful for updating the mesh vertices after any transformation has been applied, such as translation, rotation, or scaling. It modifies the vertices in place, transforming them according to the current transformation matrix.
void	set_color (uint16_t new_color)
	Set the color of the mesh.
uint16_t	get_color () const
	Get the color of the mesh.
Public Member Functions inherited from Ragot::Component
	Component ()=default
	Default constructor for the Component class.
virtual	~Component ()=default
	Default virtual destructor for the Component class.
	Component (const Component &)=delete
	Deleted copy constructor for the Component class.
	Component (const Component &&)=delete
	Deleted move constructor for the Component class.
Component &	operator= (const Component &)=delete
	Deleted assignment operator for the Component class.
Component &	operator= (const Component &&)=delete
	Deleted move assignment operator for the Component class.
void	add_component (std::shared_ptr< Component > component)
	Adds a component to the collection.
void	remove_component (std::shared_ptr< Component > component)
	Removes a component from the collection.
const std::vector< std::shared_ptr< Component > >	get_components () const
	Gets the collection of components.
Public Member Functions inherited from Ragot::Node
	Node ()=default
	Default constructor for Node. Initializes an empty node with no parent and no children.
virtual	~Node ()=default
	Default destructor for Node. Cleans up the node and its children.
	Node (const Node &)=delete
	Deleted copy constructor for Node. Prevents copying of Node instances.
	Node (const Node &&)=delete
	Deleted move constructor for Node. Prevents moving of Node instances.
Node &	operator= (const Node &)=delete
	Deleted assignment operator for Node. Prevents assignment of Node instances.
Node &	operator= (const Node &&)=delete
	Deleted move assignment operator for Node. Prevents moving of Node instances.
void	add_child (std::shared_ptr< Node > child)
	Get the parent node.
void	remove_child (std::shared_ptr< Node > child)
	Remove a child node.
const std::vector< std::shared_ptr< Node > > &	get_children () const
	Get the parent node.
mat4	get_transform_matrix () override
	Get the transform matrix object.
Public Member Functions inherited from Ragot::Transform
	Transform ()
	Default constructor for the Transform class.
virtual	~Transform ()=default
	Virtual destructor for the Transform class.
void	set_position (const vec3 &pos)
	Sets the position of the object.
vec3	get_position () const
	Gets the current position of the object.
void	set_rotation (const vec3 &rot)
	Moves the object by a specified vector.
vec3	get_rotation () const
	Gets the current rotation of the object.
void	rotate (const float angle, const vec3 &axis)
	Rotates the object by a specified angle around a given axis.
void	set_scale (const vec3 &scale)
	Sets the scale of the object.
vec3	get_scale () const
	Sets the scale of the object uniformly.
bool	is_dirty () const
	Checks if the transformation matrix is dirty (needs recalculation).

Protected Attributes
mesh_info_t	mesh_info
	Information about the mesh, including coordinates and rendering type.
uint16_t	color = 0xFFFF
	Color of the mesh, default is white (0xFFFF).
std::vector< glm::fvec4 >	vertices
	Vector of vertices representing the mesh in 3D space.
std::vector< face_t >	faces
	Vector of faces representing the mesh, each face can be a triangle or a quad.
int	slices = 16
	Number of slices for generating the mesh, default is 16.
Protected Attributes inherited from Ragot::Component
std::vector< std::shared_ptr< Component > >	components
	Collection of components managed by this Component instance.
Protected Attributes inherited from Ragot::Node
std::vector< std::shared_ptr< Node > >	children
	List of child nodes.
Node *	parent = nullptr
	Pointer to the parent node.
Protected Attributes inherited from Ragot::Transform
vec3	position
	The position of the object in 3D space.
vec3	rotation
	The rotation of the object in degrees around each axis (x, y, z).
vec3	scale
	The scale of the object in 3D space, default is (1, 1, 1).
bool	dirty = true
	Flag indicating whether the transformation matrix needs to be recalculated.

Detailed Description

Represents a 3D mesh in the Ragot engine.

The Mesh class is a base class for creating 3D meshes with vertices and faces. It provides methods to generate vertices and faces, apply transformations, and manage mesh information. The class also includes methods for setting and getting the color of the mesh.

Constructor & Destructor Documentation

Mesh() [1/2]

Ragot::Mesh::Mesh ( )

delete

Construct a new Mesh object (deleted constructor).

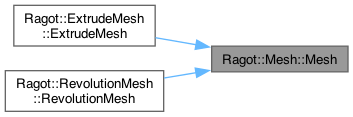

Here is the caller graph for this function:

~Mesh()

virtual Ragot::Mesh::~Mesh ( )

virtualdefault

Default virtual destructor for the Mesh class.

Cleans up the mesh and its resources.

Mesh() [2/2]

Ragot::Mesh::Mesh

(

mesh_info_t &

mesh_info

)

Construct a new Mesh object with mesh information.

Initializes the mesh with the provided mesh information.

Parameters

mesh_info

Information about the mesh, including coordinates and rendering type.

Member Function Documentation

apply_transform_to_vertices()

void Ragot::Mesh::apply_transform_to_vertices ( )

inline

Apply the current transformation to the vertices of the mesh. This method applies the transformation matrix obtained from the Transform class to each vertex in the mesh. This is useful for updating the mesh vertices after any transformation has been applied, such as translation, rotation, or scaling. It modifies the vertices in place, transforming them according to the current transformation matrix.

Here is the call graph for this function:

Here is the caller graph for this function:

generate_faces()

virtual void Ragot::Mesh::generate_faces ( )

pure virtual

Generate faces for the mesh.

This method is pure virtual and must be implemented by derived classes. It is responsible for generating the faces of the mesh based on the vertices generated by generate_vertices.

Implemented in Ragot::ExtrudeMesh, and Ragot::RevolutionMesh.

Here is the caller graph for this function:

generate_vertices()

virtual void Ragot::Mesh::generate_vertices ( )

pure virtual

Generate vertices for the mesh.

This method is pure virtual and must be implemented by derived classes. It is responsible for generating the vertices of the mesh based on the mesh information.

Implemented in Ragot::ExtrudeMesh, and Ragot::RevolutionMesh.

Here is the caller graph for this function:

get_color()

uint16_t Ragot::Mesh::get_color ( ) const

inline

Get the color of the mesh.

This method returns the current color of the mesh.

Returns

uint16_t The color of the mesh.

get_faces()

const std::vector< face_t > & Ragot::Mesh::get_faces ( ) const

inline

Get the faces object.

Returns

const std::vector < face_t >&

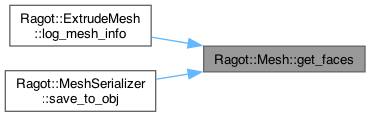

Here is the caller graph for this function:

get_total_vertices() [1/2]

size_t Ragot::Mesh::get_total_vertices ( )

inline

Get the total vertices object.

Returns

size_t

get_total_vertices() [2/2]

const size_t Ragot::Mesh::get_total_vertices ( ) const

inline

Get the total vertices object.

Returns

const size_t

Here is the caller graph for this function:

get_vertices()

const std::vector< glm::fvec4 > & Ragot::Mesh::get_vertices ( ) const

inline

Get the vertices object.

Returns

const std::vector < glm::fvec4 >&

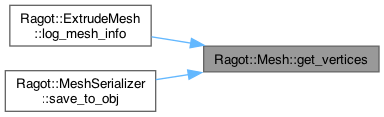

Here is the caller graph for this function:

recalculate()

void Ragot::Mesh::recalculate ( )

inline

Recalculate the mesh vertices and faces.

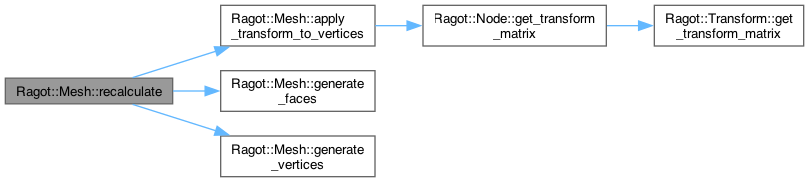

Here is the call graph for this function:

set_color()

void Ragot::Mesh::set_color ( uint16_t new_color )

inline

Set the color of the mesh.

This method sets the color of the mesh to the specified new color.

Parameters

new_color

The new color to set for the mesh.

Member Data Documentation

color

uint16_t Ragot::Mesh::color = 0xFFFF

protected

Color of the mesh, default is white (0xFFFF).

faces

std::vector< face_t > Ragot::Mesh::faces

protected

Vector of faces representing the mesh, each face can be a triangle or a quad.

mesh_info

mesh_info_t Ragot::Mesh::mesh_info

protected

Information about the mesh, including coordinates and rendering type.

slices

int Ragot::Mesh::slices = 16

protected

Number of slices for generating the mesh, default is 16.

vertices

std::vector< glm::fvec4 > Ragot::Mesh::vertices

protected

Vector of vertices representing the mesh in 3D space.

---

The documentation for this class was generated from the following files:

• main/Mesh.hpp
• main/Mesh.cpp
