Class for generating revolution meshes. More...

#include <RevolutionMesh.hpp>

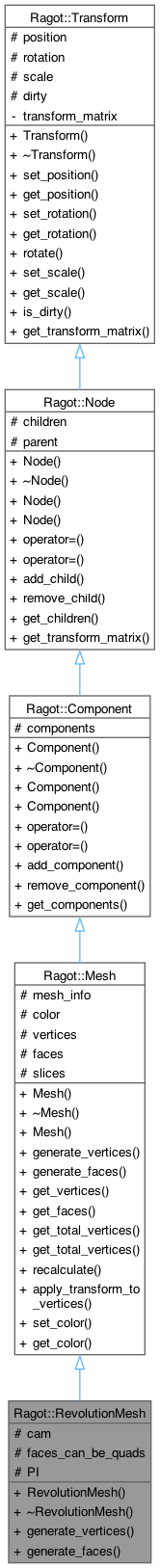

Inheritance diagram for Ragot::RevolutionMesh:

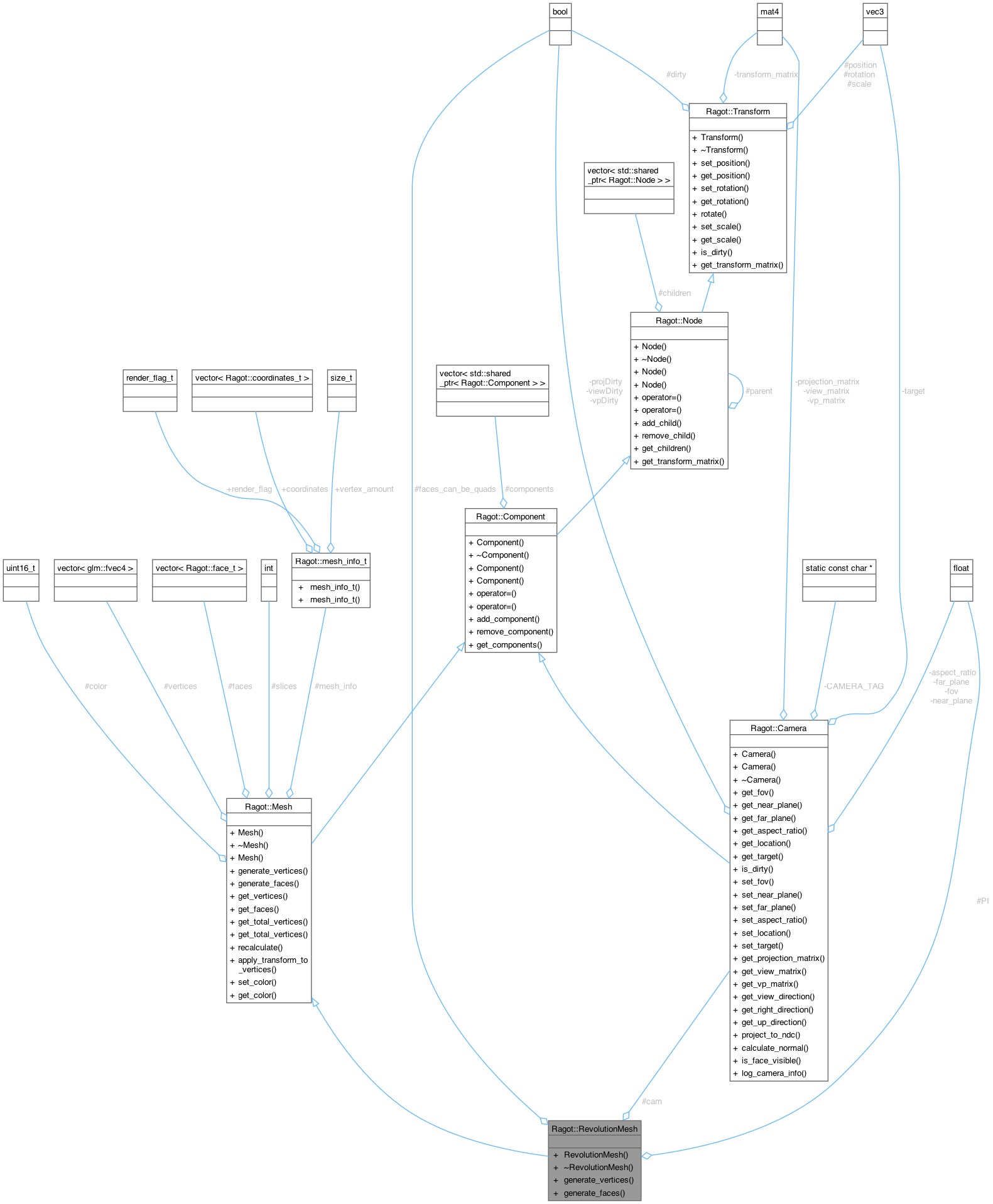

Collaboration diagram for Ragot::RevolutionMesh:

Public Member Functions
	RevolutionMesh (mesh_info_t &mesh_info, const Camera &cam)
	Constructor for the RevolutionMesh class.

	~RevolutionMesh ()=default
	Default destructor for the RevolutionMesh class.

void	generate_vertices () override
	Generates the vertices for the revolution mesh.

void	generate_faces () override
	Generates the faces for the revolution mesh.

Public Member Functions inherited from Ragot::Mesh
	Mesh ()=delete
	Construct a new Mesh object (deleted constructor).

virtual	~Mesh ()=default
	Default virtual destructor for the Mesh class.

	Mesh (mesh_info_t &mesh_info)
	Construct a new Mesh object with mesh information.

const std::vector< glm::fvec4 > &	get_vertices () const
	Get the vertices object.

const std::vector< face_t > &	get_faces () const
	Get the faces object.

const size_t	get_total_vertices () const
	Get the total vertices object.

size_t	get_total_vertices ()
	Get the total vertices object.

void	recalculate ()
	Recalculate the mesh vertices and faces.

void	apply_transform_to_vertices ()
	Apply the current transformation to the vertices of the mesh. This method applies the transformation matrix obtained from the Transform class to each vertex in the mesh. This is useful for updating the mesh vertices after any transformation has been applied, such as translation, rotation, or scaling. It modifies the vertices in place, transforming them according to the current transformation matrix.

void	set_color (uint16_t new_color)
	Set the color of the mesh.

uint16_t	get_color () const
	Get the color of the mesh.

Public Member Functions inherited from Ragot::Component
	Component ()=default
	Default constructor for the Component class.

virtual	~Component ()=default
	Default virtual destructor for the Component class.

	Component (const Component &)=delete
	Deleted copy constructor for the Component class.

	Component (const Component &&)=delete
	Deleted move constructor for the Component class.

Component &	operator= (const Component &)=delete
	Deleted assignment operator for the Component class.

Component &	operator= (const Component &&)=delete
	Deleted move assignment operator for the Component class.

void	add_component (std::shared_ptr< Component > component)
	Adds a component to the collection.

void	remove_component (std::shared_ptr< Component > component)
	Removes a component from the collection.

const std::vector< std::shared_ptr< Component > >	get_components () const
	Gets the collection of components.

Public Member Functions inherited from Ragot::Node
	Node ()=default
	Default constructor for Node. Initializes an empty node with no parent and no children.

virtual	~Node ()=default
	Default destructor for Node. Cleans up the node and its children.

	Node (const Node &)=delete
	Deleted copy constructor for Node. Prevents copying of Node instances.

	Node (const Node &&)=delete
	Deleted move constructor for Node. Prevents moving of Node instances.

Node &	operator= (const Node &)=delete
	Deleted assignment operator for Node. Prevents assignment of Node instances.

Node &	operator= (const Node &&)=delete
	Deleted move assignment operator for Node. Prevents moving of Node instances.

void	add_child (std::shared_ptr< Node > child)
	Get the parent node.

void	remove_child (std::shared_ptr< Node > child)
	Remove a child node.

const std::vector< std::shared_ptr< Node > > &	get_children () const
	Get the parent node.

mat4	get_transform_matrix () override
	Get the transform matrix object.

Public Member Functions inherited from Ragot::Transform
	Transform ()
	Default constructor for the Transform class.

virtual	~Transform ()=default
	Virtual destructor for the Transform class.

void	set_position (const vec3 &pos)
	Sets the position of the object.

vec3	get_position () const
	Gets the current position of the object.

void	set_rotation (const vec3 &rot)
	Moves the object by a specified vector.

vec3	get_rotation () const
	Gets the current rotation of the object.

void	rotate (const float angle, const vec3 &axis)
	Rotates the object by a specified angle around a given axis.

void	set_scale (const vec3 &scale)
	Sets the scale of the object.

vec3	get_scale () const
	Sets the scale of the object uniformly.

bool	is_dirty () const
	Checks if the transformation matrix is dirty (needs recalculation).

Protected Attributes
const Camera &	cam
	Reference to the camera used for rendering, providing view direction and other properties.

bool	faces_can_be_quads
	Flag indicating whether the faces can be rendered as quads or triangles.

Protected Attributes inherited from Ragot::Mesh
mesh_info_t	mesh_info
	Information about the mesh, including coordinates and rendering type.

uint16_t	color = 0xFFFF
	Color of the mesh, default is white (0xFFFF).

std::vector< glm::fvec4 >	vertices
	Vector of vertices representing the mesh in 3D space.

std::vector< face_t >	faces
	Vector of faces representing the mesh, each face can be a triangle or a quad.

int	slices = 16
	Number of slices for generating the mesh, default is 16.

Protected Attributes inherited from Ragot::Component
std::vector< std::shared_ptr< Component > >	components
	Collection of components managed by this Component instance.

Protected Attributes inherited from Ragot::Node
std::vector< std::shared_ptr< Node > >	children
	List of child nodes.

Node *	parent = nullptr
	Pointer to the parent node.

Protected Attributes inherited from Ragot::Transform
vec3	position
	The position of the object in 3D space.

vec3	rotation
	The rotation of the object in degrees around each axis (x, y, z).

vec3	scale
	The scale of the object in 3D space, default is (1, 1, 1).

bool	dirty = true
	Flag indicating whether the transformation matrix needs to be recalculated.

Static Protected Attributes
static constexpr float	PI = 3.14159265358979323846f
	Constant value for Pi, used in calculations involving angles and rotations.

Detailed Description

Class for generating revolution meshes.

This class generates a mesh by revolving a 2D profile around an axis. It inherits from the Mesh class and implements the methods to generate vertices and faces.

Constructor & Destructor Documentation

◆ RevolutionMesh()

Ragot::RevolutionMesh::RevolutionMesh	(	mesh_info_t &	mesh_info,
		const Camera &	cam )

inline

Constructor for the RevolutionMesh class.

Initializes the mesh with the provided mesh information and camera.

Parameters

mesh_info	Information about the mesh, including coordinates and rendering type.
cam	Reference to the camera used for rendering.

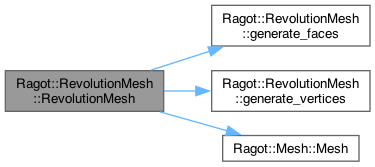

Here is the call graph for this function:

◆ ~RevolutionMesh()

Ragot::RevolutionMesh::~RevolutionMesh ( )

default

Default destructor for the RevolutionMesh class.

Cleans up resources used by the mesh.

Member Function Documentation

◆ generate_faces()

void Ragot::RevolutionMesh::generate_faces ( )

overridevirtual

Generates the faces for the revolution mesh.

This method creates the faces of the mesh by connecting the vertices generated by generate_vertices. It can create either triangles or quads based on the mesh information and the flag faces_can_be_quads.

Implements Ragot::Mesh.

Here is the caller graph for this function:

◆ generate_vertices()

void Ragot::RevolutionMesh::generate_vertices ( )

overridevirtual

Generates the vertices for the revolution mesh.

This method calculates the vertices by revolving the 2D profile around the specified axis. It uses the camera's view direction to determine the local space for the vertices.

Implements Ragot::Mesh.

Here is the caller graph for this function:

Member Data Documentation

◆ cam

const Camera& Ragot::RevolutionMesh::cam

protected

Reference to the camera used for rendering, providing view direction and other properties.

◆ faces_can_be_quads

bool Ragot::RevolutionMesh::faces_can_be_quads

protected

Flag indicating whether the faces can be rendered as quads or triangles.

◆ PI

float Ragot::RevolutionMesh::PI = 3.14159265358979323846f

staticconstexprprotected

Constant value for Pi, used in calculations involving angles and rotations.

The documentation for this class was generated from the following files:

main/RevolutionMesh.hpp
main/RevolutionMesh.cpp
